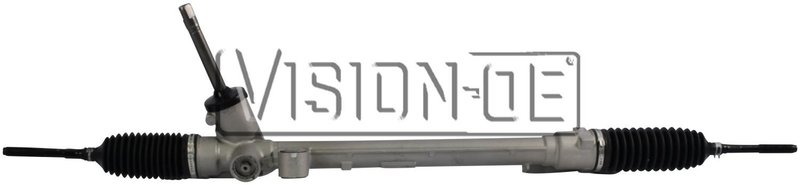

BBB Industries 208-0114 Rack and Pinion Assembly

Reman Rack and Pinion for Mazda 2

BBB Industries 208-0114 is a remanufactured hydraulic rack and pinion assembly for 2011-2014 Mazda 2 models equipped with power steering. Built for direct steering system replacement, this unit is specified with inner tie rods included, bushings included, and a 2.75 turns lock-to-lock ratio for the listed application.

Key Features

• Remanufactured hydraulic rack and pinion assembly
• Fits 2011-2014 Mazda 2, power steering applications
• Inner tie rods included; outer tie rods not included
• Bushings included for the steering gear assembly
• 3 mounting holes with 24.125 in. distance between mounting holes
• Input shaft diameter: 0.724 in. (18.39 mm)
• Input shaft length: 5.188 in. (131.763 mm)
• Rack length: 42.375 in. (1076.325 mm)
• Orientation: 10:00 to 10:30
• BBB Industries part number 208-0114

Product Details

BBB Industries Reman Rack and Pinion line focuses on remanufactured steering gear assemblies built for direct-fit service replacement. Part number 208-0114 is a hydraulic rack and pinion assembly for the Mazda 2 platform, with the listed dimensions and port configuration matched to the original steering layout. This part cross-references Monroe Shocks & Struts (e.g., DF95-32-110A, DF95-32-110B) for the same application.

Use BBB Industries 208-0114 when servicing a 2011-2014 Mazda 2 steering system that requires a remanufactured hydraulic rack and pinion assembly. The unit is listed with no sensor, no check valve, and no outer tie rods included, making it important to verify the vehicle’s steering configuration before installation. The part number 208-0114 is also referenced by interchange numbers DF95-32-110A, DF95-32-110B, and DF95-32-960.

What This Part Helps Address

• Steering play or looseness at the wheel
• Uneven or delayed steering response
• Fluid leakage from the rack and pinion assembly
• Excessive steering effort in hydraulic power steering systems
• Noise or binding from worn internal steering components

Installation Notes and Tips

Confirm fitment against the 2011-2014 Mazda 2 power steering application before installation. Verify the input shaft dimensions, mounting-hole spacing, rack length, and orientation match the original unit. Inspect tie rod ends, hydraulic lines, and related steering components during replacement, and align the vehicle after installation to restore proper steering geometry.

Quality Assurance

BBB Industries remanufactured steering components are processed as service replacement parts for the listed application. This rack and pinion assembly is built as a remanufactured hydraulic unit and is identified by part number 208-0114 for accurate ordering and fitment verification.
