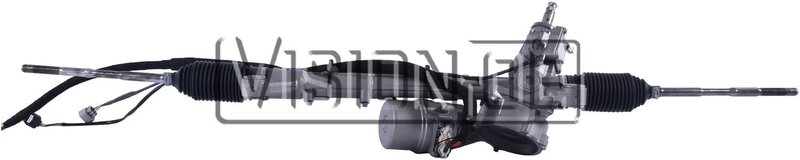

BBB Industries 213-0138E Rack and Pinion Assembly
| Brand | BBB Industries 213-0138E |
|---|---|
| Connector A Pin Count | 3 pin |
| Connector B Pin Count | 6 pin |
| Connector C Pin Count | 5 pin |
| Control Module Included | No |
| Hydraulic or Electric | Electric |
| Input Shaft Diameter (In) | 0.794 |
| Input Shaft Length (In) | 2 |
| Motor Included | Yes |
| New or Remanufactured | Remanufactured |
| Number of Mounting Holes | 4 |
| Rack Length (In) | 49.5 |
| Turns Lock To Lock | 3.15 |
| Product line | Reman Rack and Pinion |
| Fits | Subaru · 3 vehicles |
Remanufactured unit. A reman rack and pinion assembly for electric power steering service.
Integrated motor. Built with the motor included for the specified steering application.
Multiple connectors. Uses 3-pin, 6-pin, and 5-pin electrical interfaces.
Cross-references 34110-FJ150 and 34110-FJ151 for the same application. See all 2.
Product Overview
This BBB Industries remanufactured rack and pinion assembly is built for electric power steering applications and identified by part number 213-0138E. It is a direct-fit steering gear replacement for compatible Subaru Impreza models and includes an integrated motor with multiple electrical connectors for the specified application.
Key Features
- Remanufactured electric rack and pinion assembly
- Integrated motor included
- Three connector interfaces: 3-pin, 6-pin, and 5-pin
- Four mounting holes for application-specific installation
- 3.15 turns lock-to-lock for steering response characteristics
- Rack length measures 49.5 inches
Fitment
Fits 2012-2014 Subaru Impreza, N/A.
Detailed Description
Part number 213-0138E is a remanufactured electric rack and pinion assembly from BBB Industries, engineered for vehicles using electric power steering. The unit uses a 0.794-inch input shaft diameter, a 2-inch input shaft length, and a four-hole mounting layout, with connector pin counts of 3, 6, and 5 pins as listed for the application. This part cross-references Subaru part numbers 34110-FJ150 and 34110-FJ151 for the same application. For Subaru Impreza steering service, 213-0138E provides a replacement option matched to the listed power steering configuration and VDC sensor midpoint setting mode note.
Common Issues This Part May Address
- Excessive steering play or looseness
- Uneven steering effort from an electric steering system fault
- Noise or binding from a worn rack and pinion assembly
- Loss of steering precision caused by internal wear
Installation Notes and Tips
Verify connector pin counts, input shaft dimensions, mounting-hole layout, and the vehicle's power steering configuration before installation. The fitment note for this application includes VDC sensor midpoint setting mode, so steering system calibration requirements should be checked during service. Confirm the part number 213-0138E against the original unit before removal to reduce installation delays.
Quality Assurance
BBB Industries supplies remanufactured steering components for replacement service, and this rack and pinion assembly is built as a remanufactured unit for the specified application.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2014 | Subaru | Impreza | 2.0L | H4 | Power Steering; VDC Sensor midpoint setting mode; Reman Rack and Pinion |
| 2013 | Subaru | Impreza | 2.0L | H4 | Power Steering; VDC Sensor midpoint setting mode; Reman Rack and Pinion |
| 2012 | Subaru | Impreza | 2.0L | H4 | Power Steering; VDC Sensor midpoint setting mode; Reman Rack and Pinion |
