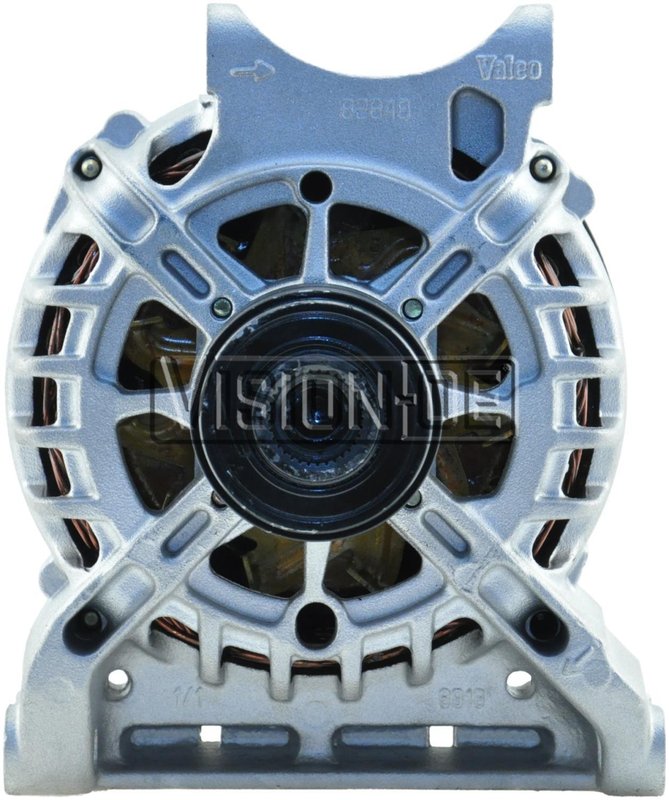

BBB Industries 23886 Alternator
| Brand | BBB Industries 23886 |
|---|---|
| Amperage Rating | 115 |
| AC Tap | No |
| Brushless Design | No |
| Cooling Method | Air |
| Decoupled Or Clutch Pulley | Yes |
| Fan Type | Internal |
| Number Of Pulley Grooves | 5 |
| OE Manufacturer | Valeo |
| One Wire Capable | No |
| Outside Pulley Diameter (in) | 2-3/16 |
| Outside Pulley Diameter (mm) | 56 |
| Plug Clock Position | 1 |
| Polarity | Negative |
| Pulley Belt Type | Serpentine |
| Pulley Included | Yes |
| Pulley Type | Clutch |
| Rotation Direction | Clockwise |
| Voltage (V) | 12 |
| Voltage Regulator Type | Internal |
| Product line | REMAN ALTERNATOR |
| Fits | Mercedes-Benz · 4 vehicles |
Remanufactured unit. OE-style alternator service part for charging-system replacement.
Integrated regulation. Internal voltage regulator supports stable electrical output.
Clutch pulley design. Serpentine belt setup with air cooling and internal fan.
Cross-references 266-154-06-02, 266-154-09-02 and A266-154-06-02 for the same application. See all 6.
Overview
This BBB Industries reman alternator is built for charging-system service on the Mercedes-Benz B200. It is a 12-volt, 115-amp unit with an internal voltage regulator, clutch pulley, and serpentine belt drive for direct replacement applications.
Part number 23886 is a remanufactured alternator that matches the OE manufacturer specification from Valeo. It is engineered for clockwise rotation and uses air cooling with an internal fan for charging-system operation.
Key Features
- 115-amp output for stable electrical charging performance
- Internal voltage regulator for integrated control
- Clutch pulley with serpentine belt drive
- Air-cooled design with internal fan
- OE manufacturer reference: Valeo
- Negative polarity and clockwise rotation
Product Details
BBB Industries part number 23886 is a reman alternator for 2006-2009 Mercedes-Benz B200 applications. The unit includes a pulley and uses a 5-groove clutch pulley design with a 56 mm outside diameter. Its 1 o'clock plug clock position and internal regulator support OE-style electrical connection and charging-system function. This part cross-references Mercedes-Benz OE numbers 266-154-06-02 and 266-154-09-02 for the same application.
Common Uses
- Charging-system warning lights caused by alternator output loss
- Battery drain from insufficient charging voltage
- Electrical instability from worn internal components
- Noise or belt-drive issues related to a failing pulley assembly
Installation Notes
Verify connector orientation, pulley style, belt type, and rotation direction before installation. Confirm fitment for the Mercedes-Benz B200 and compare the original unit to part number 23886 to ensure the electrical connection and pulley configuration match.
Quality Assurance
BBB Industries remanufactured charging components are built to OE-style specifications using the original manufacturer reference as a guide. Part number 23886 is remanufactured for consistent charging-system service and application-specific fitment.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2009 | Mercedes-Benz | B200 | 2.0L | L4 | 115 Amps; REMAN ALTERNATOR |
| 2008 | Mercedes-Benz | B200 | 2.0L | L4 | 115 Amps; REMAN ALTERNATOR |
| 2007 | Mercedes-Benz | B200 | 2.0L | L4 | 115 Amps; REMAN ALTERNATOR |
| 2006 | Mercedes-Benz | B200 | 2.0L | L4 | 115 Amps; REMAN ALTERNATOR |
