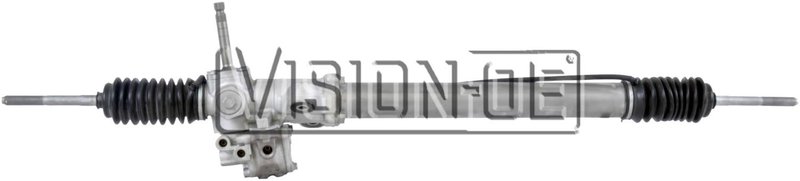

BBB Industries 305-0111 Rack and Pinion Assembly

Overview of BBB Industries Reman Rack and Pinion 305-0111

The BBB Industries Reman Rack and Pinion Assembly 305-0111 is designed specifically for Acura Integra models. This remanufactured hydraulic rack and pinion unit includes essential components such as bushings and inner tie rods to ensure reliable steering performance.

• Remanufactured hydraulic rack and pinion assembly
• Includes bushings and inner tie rods for complete steering repair
• Input shaft diameter: 0.625 inches (15.878 mm)
• Input shaft length: 2.375 inches (60.325 mm)
• Rack length: 42 inches (1066.8 mm)
• Distance between mounting holes: 4 inches (101.6 mm)
• Pressure and return port thread size: M16x1.50
• Turns lock to lock: 3.5
• Number of mounting holes: 2

Details on the Reman Rack and Pinion Product Line

The Reman Rack and Pinion line from BBB Industries offers remanufactured steering gear assemblies that meet OEM specifications. This product line focuses on restoring the original performance and durability of the steering system by using quality components and precise remanufacturing processes. The 305-0111 part is part of this line, providing a cost-effective alternative to new assemblies while maintaining reliable hydraulic steering operation for Acura Integra vehicles.

Technical Description and Specifications

This rack and pinion assembly features a hydraulic design compatible with the Acura Integra's steering system. The input shaft measures 0.625 inches in diameter and 2.375 inches in length, ensuring proper fitment and connection to the steering column. The rack length of 42 inches supports the correct steering ratio and travel, with 3.5 turns lock to lock for responsive handling. The assembly includes bushings and inner tie rods, but does not include outer tie rods. Mounting is facilitated by two holes spaced 4 inches apart, and the pressure and return ports use M16x1.50 thread sizes for hydraulic line connections.

Common Applications and Problem Resolution

• Replacement for worn or leaking hydraulic rack and pinion units on Acura Integra
• Eliminates excessive steering play or looseness
• Resolves steering noise caused by damaged bushings or internal wear
• Restores proper steering response and alignment
• Addresses hydraulic fluid leaks from pressure or return ports

Installation Notes and Tips

Ensure compatibility with your Acura Integra model year before installation. Verify that the input shaft dimensions and mounting hole spacing match your vehicle’s specifications. Since this assembly includes bushings and inner tie rods, inspect outer tie rods separately as they are not included. Properly torque mounting bolts and connect hydraulic lines to the M16x1.50 threaded ports. Bleed the hydraulic steering system after installation to remove air and ensure smooth operation.

Quality Assurance and Warranty

BBB Industries remanufactured rack and pinion assemblies undergo rigorous testing to meet OEM standards. The 305-0111 part is built to restore steering performance and durability. Warranty coverage details should be confirmed with the distributor or retailer, as BBB Industries typically offers limited warranties on remanufactured steering components.
