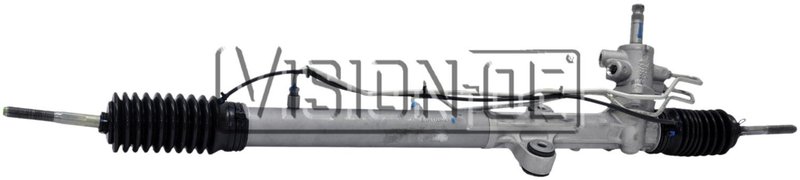

BBB Industries 305-0121 Rack and Pinion Assembly

Overview of BBB Industries Reman Rack and Pinion 305-0121

The BBB Industries Reman Rack and Pinion Assembly 305-0121 is designed for precise steering control in select Acura and Honda vehicles. This remanufactured hydraulic rack and pinion unit is compatible with Acura Accord and Honda CL models, providing reliable performance and fitment.

• Remanufactured hydraulic rack and pinion assembly
• Includes bushings and inner tie rods for comprehensive steering repair
• Distance between mounting holes: 4.56 inches (115.824 mm)
• Input shaft diameter: 0.616 inches (15.639 mm), length: 2.625 inches (66.675 mm)
• Rack length: 40.25 inches (1022.35 mm)
• Pressure port thread size: M14x1.50; return port thread size: M16x1.50
• Turns lock to lock: 3.625
• Two mounting holes for secure installation

Details on the Reman Rack and Pinion Product Line

The Reman Rack and Pinion line from BBB Industries focuses on remanufactured steering components that meet OEM specifications. This product line ensures that each rack and pinion assembly undergoes thorough inspection and testing to restore functionality and durability. The 305-0121 part benefits from this process, offering a cost-effective alternative to new units while maintaining compatibility and performance for Acura Accord and Honda CL vehicles.

Technical Description and Specifications

This rack and pinion assembly features a hydraulic design suitable for power steering systems in compatible Acura and Honda models. The inclusion of bushings and inner tie rods simplifies the steering system rebuild process. With a rack length of 40.25 inches and precise input shaft dimensions, the 305-0121 ensures proper fit and steering response. The two mounting holes spaced 4.56 inches apart provide secure attachment points, while the pressure and return port thread sizes (M14x1.50 and M16x1.50) align with factory hydraulic connections. The 3.625 turns lock to lock ratio offers balanced steering effort and control.

Common Applications and Problem Resolution

• Restores steering precision in Acura Accord and Honda CL models
• Addresses issues with worn or leaking hydraulic rack and pinion units
• Eliminates excessive play or steering wheel vibration
• Resolves difficulty in steering or uneven steering response
• Replaces damaged or corroded rack and pinion assemblies

Installation Notes and Tips

Ensure compatibility with your specific Acura Accord or Honda CL model year before installation. The assembly includes bushings and inner tie rods but does not include outer tie rods. Proper alignment and torque specifications should be followed during installation to maintain steering performance and safety. Verify hydraulic connections match the M14x1.50 pressure port and M16x1.50 return port thread sizes for a secure fit.

Quality Assurance and Warranty

As a remanufactured component, the BBB Industries Reman Rack and Pinion 305-0121 undergoes rigorous testing to meet OEM standards. This part is designed to provide reliable steering performance consistent with factory specifications. Warranty coverage details should be confirmed with the distributor or installer to ensure protection against defects.
