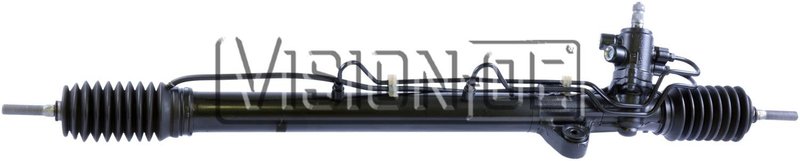

BBB Industries 305-0169 Rack and Pinion Assembly

Reman Rack and Pinion for Prelude Steering

BBB Industries Reman Rack and Pinion 305-0169 is a hydraulic steering gear assembly built for direct replacement in select Honda Prelude applications. It is remanufactured with inner tie rods and bushings included, and it uses the original hydraulic port layout for service on power steering systems.

Fits 1997-2001 Honda Prelude, N/A. This BBB Industries Reman Rack and Pinion line focuses on remanufactured steering components for OE-style service replacement, including hydraulic rack assemblies such as 305-0169.

Key Features

• Remanufactured hydraulic rack and pinion assembly
• Fits 1997-2001 Honda Prelude, N/A
• Inner tie rods included; outer tie rods not included
• Bushings included for mounting support
• Pressure port thread size: M14x1.50
• Return port thread size: M16x1.50
• Rack length: 40 in. (1016 mm)
• Turns lock to lock: 2.813
• Distance between mounting holes: 4.25 in. (107.95 mm)
• Input shaft diameter: 0.616 in. (15.639 mm)

Detailed Description

BBB Industries 305-0169 is a remanufactured rack and pinion assembly for Honda Prelude models equipped with power steering. The unit is hydraulic and uses a 2-bolt mounting pattern, with the specified input shaft dimensions and port thread sizes needed for proper steering system connection. The 40-inch rack length and 2.813 turns lock to lock align with the vehicle application listed in the fitment data. This part cross-references Monroe Shocks & Struts (e.g., 19320627) for the same application.

Common Steering Issues This Part May Address

• Excessive steering play or delayed steering response
• Fluid leakage from a worn hydraulic rack assembly
• Binding, rough steering, or inconsistent assist
• Noise from internal rack wear or damaged bushings
• Wear-related looseness in the inner tie rod area

Installation Notes and Tips

Confirm hydraulic port thread sizes, mounting-hole spacing, and input shaft dimensions before installation. Because outer tie rods are not included, reuse or replace them as needed during service. After installation, bleed the power steering system and perform a professional alignment to verify steering wheel center and road tracking.

Quality Assurance

BBB Industries remanufactures steering components to service OE-style applications with attention to fitment-specific dimensions and hydraulic connection points. Verify the part number 305-0169 against the vehicle’s steering configuration before ordering.
