BBB Industries 306-0110 Rack and Pinion Assembly

Overview of BBB Industries Reman Rack and Pinion 306-0110

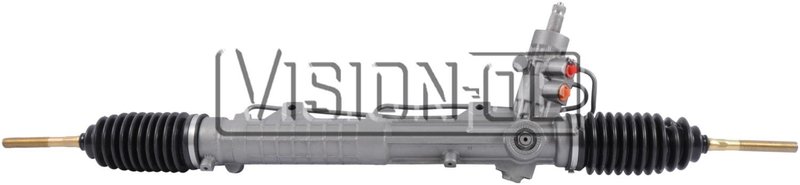

The BBB Industries Reman Rack and Pinion Assembly 306-0110 is designed for precise steering control in select BMW models. This remanufactured hydraulic rack and pinion unit includes inner tie rods and is engineered to meet OEM specifications for reliable performance.

• Remanufactured hydraulic rack and pinion assembly
• Includes inner tie rods for streamlined installation
• Input shaft diameter: 0.694 inches (17.63 mm)
• Input shaft length: 2.75 inches (69.85 mm)
• Rack length: 38.75 inches
• Two mounting holes for secure fitment
• Pressure port thread size: M16x1.50
• Turns lock to lock: 3.375
• Compatible with BMW 323Ci, 323i, 325Ci, 325i, 328Ci, 328i, 330Ci, and 330i models

About the Reman Rack and Pinion Product Line

The Reman Rack and Pinion line from BBB Industries focuses on remanufactured steering components that restore factory steering feel and function. Each unit undergoes a thorough remanufacturing process to ensure hydraulic integrity and mechanical precision. The 306-0110 part benefits from this process, providing a cost-effective alternative to new assemblies while maintaining compatibility and performance for BMW vehicles.

Detailed Product Description

This rack and pinion assembly is specifically designed for hydraulic steering systems and includes inner tie rods, simplifying the replacement process. The input shaft measures 0.694 inches in diameter and 2.75 inches in length, matching OEM specifications for a proper fit. With a rack length of 38.75 inches and two mounting holes, this assembly ensures secure installation. The pressure port thread size of M16x1.50 is standard for hydraulic connections, and the 3.375 turns lock to lock ratio provides responsive steering control. Note that bushings and outer tie rods are not included with this assembly.

Common Applications and Problem Resolution

• Restores steering precision in BMW 3 Series models including 323Ci, 325i, and 330i
• Addresses issues such as steering play or looseness
• Eliminates hydraulic leaks in the rack and pinion assembly
• Corrects uneven or difficult steering response
• Replaces worn or damaged inner tie rods

Installation Notes and Tips

• Verify compatibility with your specific BMW model and year before installation
• Ensure hydraulic lines are properly connected to the M16x1.50 pressure port
• Inspect and replace outer tie rods and bushings separately if needed
• Bleed the hydraulic steering system after installation to remove air
• Check alignment after installation to maintain proper steering geometry

Quality Assurance and Warranty

BBB Industries remanufactured rack and pinion assemblies undergo rigorous testing to meet OEM standards for durability and performance. The 306-0110 part is backed by BBB Industries' quality assurance processes. Please refer to BBB Industries or your parts provider for specific warranty details related to this remanufactured assembly.
