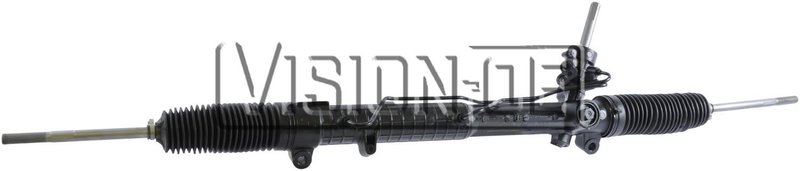

BBB Industries 307-0140 Rack and Pinion Assembly

Overview of BBB Industries Reman Rack and Pinion 307-0140

The BBB Industries Reman Rack and Pinion Assembly 307-0140 is designed specifically for Land Rover LR3 models. This remanufactured hydraulic rack and pinion unit offers precise steering control and reliable performance tailored to your vehicle's specifications.

• Remanufactured hydraulic rack and pinion assembly
• Compatible with Land Rover LR3
• Includes inner tie rods; outer tie rods not included
• Distance between mounting holes: 20.5 inches (520.7 mm)
• Input shaft diameter: 0.727 inches (18.466 mm), length: 3.813 inches (96.838 mm)
• Rack length: 55.375 inches (1406.525 mm)
• Pressure port thread size: 11 mm; return port thread size: 9.52 mm
• Turns lock to lock: 3.313
• Two mounting holes for secure installation

Details on the Reman Rack and Pinion Product Line

The Reman Rack and Pinion line from BBB Industries focuses on providing remanufactured steering components that meet original equipment specifications. This product line ensures that each rack and pinion assembly undergoes thorough inspection and testing to restore functionality and durability. The 307-0140 model benefits from this process, delivering a reliable steering solution for the Land Rover LR3.

Technical Description and Specifications

This rack and pinion assembly features a hydraulic design optimized for the Land Rover LR3. The unit includes inner tie rods for a more complete steering setup, though outer tie rods are not included. The input shaft measures 0.727 inches in diameter and 3.813 inches in length, providing compatibility with the vehicle's steering column. The rack length of 55.375 inches ensures proper fitment within the steering system. Mounting is facilitated by two holes spaced 20.5 inches apart, allowing for secure attachment. Thread sizes for the pressure and return ports are 11 mm and 9.52 mm respectively, matching factory specifications. The steering ratio is reflected in the 3.313 turns lock to lock, contributing to responsive handling.

Common Applications and Problem Resolution

• Restores precise steering control in Land Rover LR3 vehicles
• Addresses issues with worn or leaking hydraulic rack and pinion units
• Eliminates excessive play or steering wheel vibration
• Replaces damaged or corroded input shafts or tie rods
• Improves overall steering responsiveness and safety

Installation Notes and Tips

Installation of the BBB Industries 307-0140 rack and pinion assembly should be performed by a qualified technician familiar with Land Rover LR3 steering systems. Ensure all hydraulic connections use the correct thread sizes (11 mm pressure port, 9.52 mm return port) and are properly sealed to prevent leaks. Verify the distance between mounting holes (20.5 inches) matches the vehicle's mounting points. Since outer tie rods are not included, inspect and replace them separately if necessary. After installation, a professional wheel alignment is recommended to maintain proper steering geometry.

Quality Assurance and Warranty

This remanufactured rack and pinion assembly undergoes comprehensive testing to meet BBB Industries' quality standards. While specific warranty details are not provided here, BBB Industries typically offers coverage on remanufactured steering components to ensure reliability and customer confidence. Refer to the product documentation or manufacturer for exact warranty terms.
