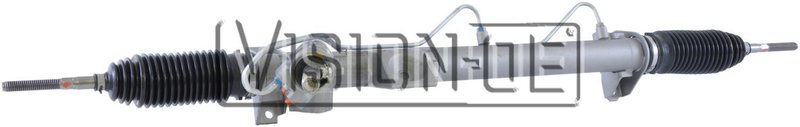

BBB Industries 307-0168 Rack and Pinion Assembly
| Brand | BBB Industries 307-0168 |
|---|---|
| Bushings Included | No |
| Distance Between Mounting Holes (In) | 20.06 |
| Distance Between Mounting Holes (mm) | 509.524 |
| Hydraulic or Electric | Hydraulic |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter (In) | 0.75 |
| Input Shaft Diameter (mm) | 19.05 |
| Input Shaft Length (In) | 2.87 |
| Input Shaft Length (mm) | 72.898 |
| New or Remanufactured | Remanufactured |
| Number of Mounting Holes | 4 |
| Outer Tie Rods Included | No |
| Pressure Port Thread Size | M18x1.50 |
| Rack Length (In) | 44.25 |
| Rack Length (mm) | 1123.95 |
| Return Port Thread Size | M18x1.50 |
| Turns Lock To Lock | 3.188 |
| Product line | Reman Rack and Pinion |
| Fits | Volvo · 4 vehicles |
Remanufactured unit. Service replacement steering gear for hydraulic power steering systems.
Inner tie rods included. Simplifies steering gear service with key components already in place.
Precise port sizing. Uses M18 x 1.50 pressure and return threads for proper connection.
Cross-references 19320734 for the same application. See all 1.
Product Overview
BBB Industries 307-0168 is a remanufactured hydraulic rack and pinion assembly built for power steering systems. It includes inner tie rods and uses M18 x 1.50 pressure and return ports for a direct service replacement.
Compatible with select 1999-2000 Volvo S70 and Volvo V70 applications, this rack and pinion is specified for vehicles with VIN 11th digit 2. The 307-0168 part number is also cross-referenced to 19320734 for the same application.
Key Features
- Remanufactured hydraulic rack and pinion assembly
- Inner tie rods included for service convenience
- M18 x 1.50 pressure and return port threads
- 3.188 turns lock to lock for steering response
- 44.25 in rack length with four mounting holes
- BBB Industries Reman Rack and Pinion product line
Detailed Description
The BBB Industries 307-0168 rack and pinion assembly is a remanufactured hydraulic steering unit for vehicles using a power steering setup. It measures 44.25 inches in rack length, has a 20.06-inch mounting hole spacing, and uses a 0.75-inch input shaft diameter with a 2.87-inch input shaft length. The assembly includes inner tie rods and is configured with four mounting holes, while outer tie rods are not included.
For fitment-specific service work, this part fits 1999-2000 Volvo S70 and 1999-2000 Volvo V70, with notes calling out power steering and VIN 11th digit 2. When replacing a worn steering gear on a Volvo S70 or Volvo V70, confirm the VIN note and port/thread specifications before installation. Part number 307-0168 should be matched to the vehicle application exactly, and 307-0168 is cross-referenced to 19320734.
Common Issues This Part May Address
- Excessive steering play or loose steering feel
- Fluid leakage from the steering gear assembly
- Uneven steering response during turns
- Wear in the hydraulic rack and pinion unit
Installation Notes
Verify power steering configuration, VIN 11th digit 2, and port thread sizes before installation. Confirm mounting-hole spacing, input shaft dimensions, and rack length against the removed unit to ensure proper alignment and connection.
Quality Assurance
BBB Industries remanufactures steering components for service replacement applications. This remanufactured rack and pinion assembly is built to restore steering system function using the specified hydraulic configuration and included inner tie rods.
| Year | Make | Model | Drive Type | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|
| 2000 | Volvo | S70 | FWD | 2.4L | L5 | Power Steering; VIN 11th Digit is 2; Reman Rack and Pinion |
| 2000 | Volvo | V70 | FWD | 2.4L | L5 | Power Steering; VIN 11th Digit is 2; Reman Rack and Pinion |
| 1999 | Volvo | S70 | FWD | 2.4L | L5 | Power Steering; VIN 11th Digit is 2; Reman Rack and Pinion |
| 1999 | Volvo | V70 | FWD | 2.4L | L5 | Power Steering; VIN 11th Digit is 2; Reman Rack and Pinion |
