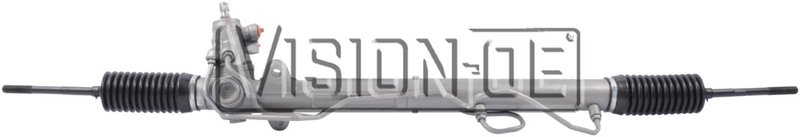

BBB Industries 309-0114 Rack and Pinion Assembly
| Brand | BBB Industries 309-0114 |
|---|---|
| Bushings Included | No |
| Distance Between Mounting Holes (In) | 3.25 |
| Distance Between Mounting Holes (mm) | 82.55 |
| Hydraulic or Electric | Hydraulic |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter (In) | 0.625 |
| Input Shaft Diameter (mm) | 15.875 |
| Input Shaft Length (In) | 1.125 |
| Input Shaft Length (mm) | 28.575 |
| New or Remanufactured | Remanufactured |
| Number of Mounting Holes | 2 |
| Outer Tie Rods Included | No |
| Pressure Port Thread Size | M14X1.50 |
| Rack Length (In) | 48.5 |
| Rack Length (mm) | 1231.9 |
| Return Port Thread Size | M16X1.50 |
| Turns Lock To Lock | 2.375 |
| Product line | Reman Rack and Pinion |
| Fits | Chrysler, Dodge, Mitsubishi, and Eagle · 17 vehicles |
Remanufactured assembly. A reman rack and pinion built for hydraulic steering systems.
Inner tie rods included. Ready with the inner tie rods already installed.
Two mounting holes and standard pressure and return port threads.
Cross-references 19320830 and MB171828 for the same application. See all 2.
Reman Rack and Pinion for Chrysler, Dodge, and Mitsubishi
BBB Industries Reman Rack and Pinion 309-0114 is a hydraulic steering gear assembly built for vehicles with power steering. It is a remanufactured rack and pinion with inner tie rods included, making it a direct-fit steering replacement for select Chrysler Sebring, Dodge Avenger, and Mitsubishi Eclipse applications.
The BBB Industries Reman Rack and Pinion line focuses on remanufactured steering components that match the original hydraulic layout and mounting dimensions. Part number 309-0114 uses a 2-bolt mounting pattern, M14x1.50 pressure port threads, M16x1.50 return port threads, and a 2.375 turns lock-to-lock specification for the listed applications.
Key Features
- Brand: BBB Industries Reman Rack and Pinion
- Part number: 309-0114
- Hydraulic rack and pinion assembly
- Remanufactured steering gear
- Inner tie rods included
- 2 mounting holes with 3.25 in. / 82.55 mm spacing
- Input shaft diameter: 0.625 in. / 15.875 mm
- Input shaft length: 1.125 in. / 28.575 mm
- Rack length: 48.5 in. / 1231.9 mm
- Pressure port thread size: M14x1.50
- Return port thread size: M16x1.50
- Turns lock to lock: 2.375
Fitment
- Fits 1995-2000 Chrysler Sebring, N/A. Compatible with vehicles equipped with power steering; reman rack and pinion.
- Fits 1995-2000 Dodge Avenger, N/A. Compatible with vehicles equipped with power steering; reman rack and pinion.
- Fits 1995-1999 Mitsubishi Eclipse, N/A. Compatible with vehicles equipped with power steering; reman rack and pinion.
What It Is Used For
- Replacing a worn or leaking hydraulic rack and pinion assembly
- Restoring steering response with excessive play or looseness
- Addressing steering fluid loss from internal rack wear or seal failure
- Correcting steering effort changes caused by a failing hydraulic gear
- Servicing power steering systems on Chrysler Sebring, Dodge Avenger, and Mitsubishi Eclipse models
Installation Notes and Tips
Verify hydraulic port thread sizes, mounting-hole spacing, input shaft dimensions, and lock-to-lock specification before installation. This part includes inner tie rods, and the vehicle must be equipped with power steering for the listed fitments. Part number 309-0114 should be matched to the original steering gear configuration before removal of the existing unit.
Quality Assurance
BBB Industries supplies remanufactured steering components for OE-style replacement applications. This rack and pinion is remanufactured to support the listed Chrysler Sebring, Dodge Avenger, and Mitsubishi Eclipse fitments, with interchange references 19320830 and MB171828 for the same application.
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2000 | Chrysler | Sebring | Coupe | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2000 | Dodge | Avenger | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 1999 | Chrysler | Sebring | Coupe | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 1999 | Dodge | Avenger | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 1999 | Mitsubishi | Eclipse | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 1998 | Chrysler | Sebring | Coupe | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 1998 | Dodge | Avenger | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 1998 | Mitsubishi | Eclipse | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 1997 | Chrysler | Sebring | Coupe | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 1997 | Dodge | Avenger | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 1997 | Mitsubishi | Eclipse | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 1996 | Chrysler | Sebring | Coupe | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 1996 | Dodge | Avenger | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 1996 | Mitsubishi | Eclipse | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 1995 | Chrysler | Sebring | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 1995 | Dodge | Avenger | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 1995 | Mitsubishi | Eclipse | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
