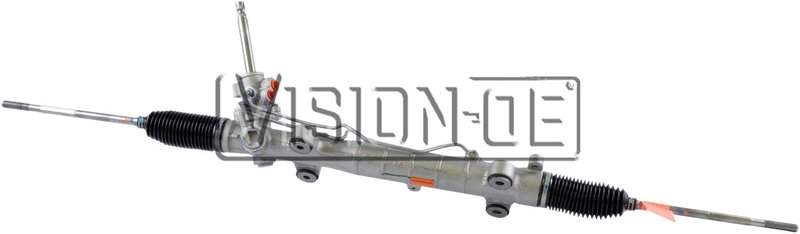

BBB Industries 309-0138 Rack and Pinion Assembly
| Brand | BBB Industries 309-0138 |
|---|---|
| Bushings Included | Yes |
| Distance Between Mounting Holes (In) | 3.75 |
| Distance Between Mounting Holes (mm) | 95.25 |
| Hydraulic or Electric | Hydraulic |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter (In) | 0.688 |
| Input Shaft Diameter (mm) | 17.463 |
| Input Shaft Length (In) | 5.125 |
| Input Shaft Length (mm) | 130.175 |
| New or Remanufactured | Remanufactured |
| Number of Mounting Holes | 4 |
| Outer Tie Rods Included | No |
| Pressure Port Thread Size | M14x1.50 |
| Rack Length (In) | 51.875 |
| Rack Length (mm) | 1317.625 |
| Return Port Thread Size | M16x1.50 |
| Turns Lock To Lock | 2.625 |
| Product line | Reman Rack and Pinion |
| Fits | Mitsubishi · 7 vehicles |
Remanufactured unit. A reman rack and pinion assembly for a cost-conscious replacement.
Hydraulic design. Delivers responsive steering assist with a traditional hydraulic setup.
Inner tie rods included. Ready for a more complete steering service right out of the box.
Cross-references 19320844 for the same application. See all 1.
Reman Rack and Pinion for Mitsubishi Eclipse
BBB Industries 309-0138 is a remanufactured hydraulic rack and pinion assembly for the 2006-2012 Mitsubishi Eclipse with power steering. It is built for direct steering-system replacement and includes inner tie rods and bushings for a complete rack-and-pinion service on the specified application.
Key Features
- Remanufactured hydraulic rack and pinion assembly
- Fits 2006-2012 Mitsubishi Eclipse with power steering
- Inner tie rods included; outer tie rods not included
- Bushings included
- 4 mounting holes with 3.75 in. (95.25 mm) mounting-hole spacing
- Input shaft diameter: 0.688 in. (17.463 mm)
- Input shaft length: 5.125 in. (130.175 mm)
- Rack length: 51.875 in. (1317.625 mm)
- Turns lock to lock: 2.625
- Pressure port thread size: M14x1.50; return port thread size: M16x1.50
Product Details
BBB Industries Reman Rack and Pinion 309-0138 is a hydraulic steering gear assembly engineered for the Mitsubishi Eclipse platform listed in the fitment data. The remanufactured design restores steering response for vehicles equipped with power steering, while the included inner tie rods and bushings support a more complete replacement of worn steering components. This part cross-references OE number 19320844 for the same application.
The BBB Industries Reman Rack and Pinion product line focuses on remanufactured steering components built to match the original system layout and connection points. For a 2006-2012 Mitsubishi Eclipse rack and pinion replacement, 309-0138 provides the key dimensions and port specifications needed to verify the steering setup before installation.
What It Helps Fix
- Excessive steering play or loose steering feel
- Fluid leakage from the rack and pinion assembly
- Uneven or inconsistent steering response
- Worn internal steering components in the hydraulic rack
- Noise or binding related to a failing steering gear
Installation Notes
Verify hydraulic port thread sizes, input shaft dimensions, mounting-hole spacing, and rack length against the original unit before installation. This part is for Mitsubishi Eclipse models equipped with power steering and uses a hydraulic steering setup. Outer tie rods are not included, so inspect the existing outer tie rods and related steering linkage during service. After installation, the steering system should be bled and aligned according to factory procedures.
Quality Assurance
BBB Industries remanufactured steering components are processed to restore function for direct replacement use. Confirm all fitment and dimensional details against the vehicle before ordering, especially on 2006-2012 Mitsubishi Eclipse applications.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2012 | Mitsubishi | Eclipse | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2011 | Mitsubishi | Eclipse | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2010 | Mitsubishi | Eclipse | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2009 | Mitsubishi | Eclipse | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2008 | Mitsubishi | Eclipse | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2007 | Mitsubishi | Eclipse | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2006 | Mitsubishi | Eclipse | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
