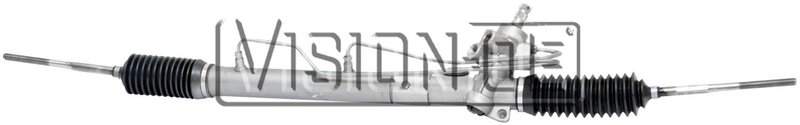

BBB Industries 310-0151 Rack and Pinion Assembly

Overview of BBB Industries Reman Rack and Pinion 310-0151

The BBB Industries Reman Rack and Pinion Assembly 310-0151 is designed specifically for Nissan Sentra models requiring a reliable hydraulic steering component. This remanufactured rack and pinion unit includes essential bushings and inner tie rods to ensure a comprehensive steering solution.

• Remanufactured hydraulic rack and pinion assembly
• Includes bushings and inner tie rods for complete installation
• Input shaft diameter: 0.75 inches (19.05 mm)
• Input shaft length: 1.714 inches (43.541 mm)
• Rack length: 45.625 inches (1158.875 mm)
• Pressure port thread size: M14x1.50
• Return port thread size: M16x1.50
• Single mounting hole design
• Turns lock to lock: 2.438

Details on the Reman Rack and Pinion Product Line

The Reman Rack and Pinion line from BBB Industries offers remanufactured steering gear assemblies that meet OEM specifications. This product line focuses on restoring core steering components to functional condition, providing a cost-effective alternative to new parts while maintaining performance standards. The 310-0151 model is part of this line, engineered to deliver consistent hydraulic steering response for Nissan Sentra vehicles.

Technical Description and Specifications

This remanufactured rack and pinion assembly features a hydraulic design compatible with Nissan Sentra models. The input shaft measures 0.75 inches in diameter and 1.714 inches in length, ensuring proper fitment and connection to the steering column. The rack length of 45.625 inches supports the vehicle's steering geometry, while the single mounting hole simplifies installation. Included bushings and inner tie rods reduce the need for additional parts, although outer tie rods are not included. Thread sizes for pressure and return ports are M14x1.50 and M16x1.50 respectively, matching factory specifications.

Common Applications and Problem Resolution

• Replacement for worn or leaking hydraulic rack and pinion units on Nissan Sentra
• Eliminates excessive steering play or looseness
• Resolves steering noise caused by damaged bushings
• Restores proper steering response and lock-to-lock turns
• Addresses hydraulic fluid leaks from pressure or return ports

Installation Notes and Tips

• Verify compatibility with Nissan Sentra model year before installation
• Inspect and replace outer tie rods separately as they are not included
• Ensure proper torque on mounting hardware and hydraulic connections
• Bleed the hydraulic steering system after installation to remove air
• Check input shaft alignment to prevent premature wear

Quality Assurance and Warranty Information

BBB Industries remanufactured rack and pinion assemblies undergo rigorous testing to meet OEM standards. The 310-0151 part number is backed by a manufacturer warranty covering defects in materials and workmanship. This ensures reliable performance and peace of mind when replacing the steering gear on Nissan Sentra vehicles.
