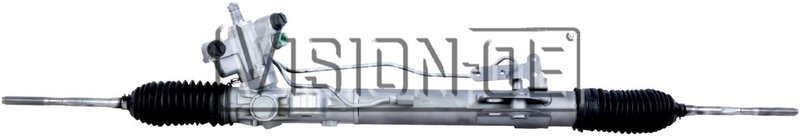

BBB Industries 310-0193 Rack and Pinion Assembly

Overview of BBB Industries Reman Rack and Pinion Assembly

The BBB Industries Reman Rack and Pinion Assembly 310-0193 is designed specifically for Nissan Murano models requiring a hydraulic steering system. This rack and pinion assembly offers precise steering control and reliable performance tailored to your vehicle's specifications.

• Hydraulic steering type for smooth and responsive handling
• Includes inner tie rods for a complete steering solution
• Installation kit included for streamlined replacement
• Manufactured new for consistent quality and durability
• Compatible with Nissan Murano models requiring part number 310-0193

Reman Rack and Pinion Product Line Details

The Reman Rack and Pinion line by BBB Industries focuses on providing remanufactured steering components that meet or exceed OEM standards. This product line ensures that each rack and pinion assembly is rebuilt or manufactured new with attention to critical dimensions and performance attributes, such as mounting hole spacing and input shaft specifications, to maintain factory fit and function.

Technical Specifications and Features

This rack and pinion assembly features a hydraulic steering system compatible with Nissan Murano vehicles. The distance between front mounting holes measures 11.5 inches (294.5 mm), and the overall rack length is 45 inches (1143.5 mm). The input shaft diameter is 0.68 inches (17.3 mm) with a spline count of 36, ensuring proper engagement with the steering column. Inner tie rods are included, sized M14x1.50 with a length of 10.1 inches (258.5 mm), while outer tie rods are not included. The assembly uses O-ring type pressure and return port attachments with thread sizes M14x1.50 and M16x1.50 respectively. The unit has three mounting holes and offers 3.06 turns lock to lock for precise steering response.

Common Applications and Problem Resolution

• Replacement for worn or leaking hydraulic rack and pinion in Nissan Murano
• Corrects excessive steering play or looseness
• Resolves steering noise or binding issues
• Addresses fluid leaks from pressure or return ports
• Restores proper steering feel and vehicle handling

Installation Notes and Tips

Installation of the BBB Industries Reman Rack and Pinion Assembly 310-0193 should be performed by a qualified technician familiar with hydraulic steering systems. The included installation kit provides necessary hardware for mounting. Ensure all mounting hole distances match vehicle specifications (11.5 inches between front holes). Proper torque specifications should be followed for mounting bolts and tie rod ends. Bleeding the hydraulic system after installation is essential to remove air and ensure optimal steering performance.

Quality Assurance and Warranty

This rack and pinion assembly is manufactured new and undergoes rigorous quality control to meet OEM standards. BBB Industries provides a limited warranty covering defects in materials and workmanship. For specific warranty terms and coverage, refer to BBB Industries documentation or contact the manufacturer directly.
