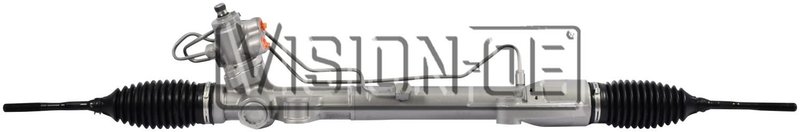

BBB Industries 310-0244 Rack and Pinion Assembly

Reman Rack and Pinion for Nissan Altima

BBB Industries Reman Rack and Pinion 310-0244 is a hydraulic steering rack and pinion assembly for 2013-2018 Nissan Altima models equipped with power steering. It includes inner tie rods and a check valve, and it is built as a new unit for direct replacement service.

Key Features

• Hydraulic rack and pinion assembly for power steering systems
• Includes inner tie rods; outer tie rods are not included
• Check valve included for hydraulic steering operation
• 44 in. rack length with 11.625 in. mounting hole spacing
• Pressure port thread size: M16x1.50; return port thread size: M17x1.50
• Input shaft diameter: 0.685 in. (17.4 mm); input shaft length: 1 in. (25.4 mm)
• Turns lock to lock: 2 13/16
• BBB Industries Reman Rack and Pinion line for steering replacement applications

Product Details

This BBB Industries rack and pinion assembly, part number 310-0244, is specified for 2013-2018 Nissan Altima vehicles with hydraulic power steering. The unit measures 44 inches in rack length and uses a two-hole mounting layout with 11.625 inches between mounting holes. Inner tie rods are included, while outer tie rods, bushings, and a sensor are not included. The steering connection uses a 0.685-inch input shaft diameter and M16x1.50 pressure and M17x1.50 return port threads for proper hydraulic line connection. This part cross-references OE numbers 49001-3TA0B and 49001-3TA1A for the same application.

What It Helps Address

• Steering play or looseness in the Nissan Altima
• Hydraulic steering fluid leakage at the rack assembly
• Uneven or inconsistent steering response
• Excessive steering effort in power steering systems
• Wear-related replacement needs in the rack and pinion assembly

Installation Notes

Verify hydraulic port thread sizes, input shaft dimensions, mounting-hole spacing, and lock-to-lock travel before installation. This part is for 2013-2018 Nissan Altima models equipped with power steering, and fitment should be matched to the vehicle’s steering configuration before removal of the original unit. Transfer or replace related steering components as needed during service, and confirm proper hydraulic bleeding after installation.

Quality Assurance

BBB Industries supplies this Reman Rack and Pinion as a steering replacement component built to match the listed application details for 2013-2018 Nissan Altima models.
