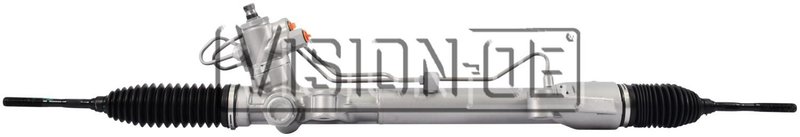

BBB Industries 310-0252 Rack and Pinion Assembly
| Brand | BBB Industries 310-0252 |
|---|---|
| Bushings Included | No |
| Check Valve | Yes |
| Distance Between Mounting Holes (In) | 11.563 |
| Hydraulic or Electric | Hydraulic |
| Inner Tie Rod Length | 9.563 |
| Inner Tie Rod Thread Size | 2.063 |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter (In) | 0.687 |
| Input Shaft Diameter (mm) | 17.44 |
| Input Shaft Length (In) | 1 |
| Input Shaft Length (mm) | 25.4 |
| New or Remanufactured | New |
| Number of Mounting Holes | 2 |
| Orientation (Center) | Not applicable |
| Outer Tie Rods Included | No |
| Pressure Port Thread Size | M16x1.50 |
| Rack Length (In) | 44 |
| Rack Length (mm) | 1117.6 |
| Return Port Thread Size | M17x1.50 |
| Sensor Included | No |
| Turns Lock To Lock | 2.625 |
| Product line | Reman Rack and Pinion |
| Fits | Nissan · 8 vehicles |
Hydraulic design. Built for power steering systems with a check valve for controlled fluid flow.
Complete steering gear service. Inner tie rods are included for a more efficient rack replacement.
Service-ready replacement. BBB Industries Reman Rack and Pinion line focuses on steering gear applications.
Cross-references 49001-4RA0A for the same application. See all 1.
Overview
BBB Industries 310-0252 is a new hydraulic rack and pinion assembly for Nissan Maxima applications with power steering. It is built as a direct steering gear replacement with inner tie rods included and a check valve for hydraulic control.
Key Features
- New hydraulic rack and pinion assembly
- Inner tie rods included for a complete steering gear service
- Check valve included for hydraulic system operation
- Pressure port M16x1.50 and return port M17x1.50
- 44-inch rack length with 2.625 turns lock to lock
Detailed Description
This BBB Industries rack and pinion assembly, part number 310-0252, is engineered for Nissan Maxima steering systems that use hydraulic power steering. The unit features a 44-inch rack length, two mounting holes, and a 17.44 mm input shaft diameter, along with inner tie rods already included. For buyers replacing a worn steering gear, 310-0252 provides the core hydraulic components needed for a steering rack service on 2016-2023 Nissan Maxima applications.
BBB Industries’ Reman Rack and Pinion line focuses on steering gear replacement parts built for service applications where the original hydraulic rack has wear, leakage, or excessive play. This part cross-references Nissan 49001-4RA0A for the same application.
What It Helps Fix
- Steering play or looseness in the rack assembly
- Hydraulic fluid leakage at the steering gear
- Binding or inconsistent steering effort
- Worn internal rack components affecting response
- Failed steering gear on power steering systems
Installation Notes
Compatible with 2016-2023 Nissan Maxima models equipped with power steering. Verify port thread sizes, input shaft dimensions, and mounting-hole spacing before installation. Professional steering system service and alignment are recommended after replacement.
Quality Assurance
BBB Industries supplies remanufactured steering components through its Reman Rack and Pinion product line, with a focus on service-ready replacement parts for hydraulic steering systems.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2023 | Nissan | Maxima | Power Steering; Reman Rack and Pinion |
| 2022 | Nissan | Maxima | Power Steering; Reman Rack and Pinion |
| 2021 | Nissan | Maxima | Power Steering; Reman Rack and Pinion |
| 2020 | Nissan | Maxima | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2019 | Nissan | Maxima | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2018 | Nissan | Maxima | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2017 | Nissan | Maxima | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2016 | Nissan | Maxima | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
