OE Quality
60-Day Returns

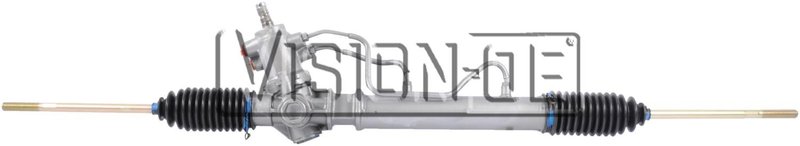

BBB Industries 311-0127 Rack and Pinion Assembly
Reman Rack and Pinion for Toyota Celica
BBB Industries 311-0127 is a remanufactured hydraulic rack and pinion assembly for 1986-1989 Toyota Celica models equipped with power steering. It is built for direct steering-system replacement and includes inner tie rods for a more complete service solution.
Key Features
- Remanufactured hydraulic rack and pinion assembly
- Fits 1986-1989 Toyota Celica with power steering
- Inner tie rods included; outer tie rods not included
- Rack length: 46.5 in. (1181.1 mm)
- Input shaft diameter: 0.688 in. (17.463 mm)
- Pressure port thread size: M16x1.50
- Return port thread size: M17x1.50
- Turns lock to lock: 2.75
- BBB Industries Reman Rack and Pinion line
Product Details
The BBB Industries Reman Rack and Pinion line focuses on remanufactured steering components built to match the original hydraulic layout of the vehicle. Part number 311-0127 is specified for Toyota Celica applications from 1986 through 1989 and is identified as a hydraulic unit with one mounting hole, no bushings included, and inner tie rods included. For shoppers searching for a reman rack and pinion for Toyota Celica power steering, 311-0127 provides the key dimensions and port specifications needed for application matching.
This part cross-references Monroe Shocks & Struts (e.g., 19320972) for the same application.
What It Helps Address
- Excessive steering play or looseness
- Fluid leakage from a worn hydraulic rack
- Uneven or inconsistent steering response
- Noise or binding from internal steering wear
- Restoration of steering feel on a Toyota Celica rack and pinion replacement
Installation Notes and Tips
Fits 1986-1989 Toyota Celica, N/A. Confirm power steering configuration, port thread sizes, input shaft dimensions, and rack length before installation. Inspect related steering and hydraulic components during replacement, and verify alignment after the rack and pinion assembly is installed. Part number 311-0127 should be matched to the vehicle’s original steering setup before service begins.
Quality Assurance
BBB Industries supplies remanufactured steering components through its Reman Rack and Pinion program, with specifications listed for direct application matching on Toyota Celica models. Part number 311-0127 is remanufactured and built to the stated hydraulic configuration and dimensional requirements.
| Brand | BBB Industries |
|---|---|
| Part Number | 311-0127 |
| Position | Reman Rack and Pinion |
| Bushings Included | No |
| Hydraulic or Electric | Hydraulic |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter (In) | 0.688 |
| Input Shaft Diameter (mm) | 17.463 |
| Input Shaft Length (In) | 1.563 |
| Input Shaft Length (mm) | 39.688 |
| New or Remanufactured | Remanufactured |
| Number of Mounting Holes | 1 |
| Outer Tie Rods Included | No |
| Pressure Port Thread Size | M16x1.50 |
| Rack Length (In) | 46.5 |
| Rack Length (mm) | 1181.1 |
| Return Port Thread Size | M17x1.50 |
| Turns Lock To Lock | 2.75 |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1989 | Toyota | Celica | 2.0L | L4 | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 1988 | Toyota | Celica | 2.0L | L4 | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 1987 | Toyota | Celica | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion | ||
| 1986 | Toyota | Celica | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
