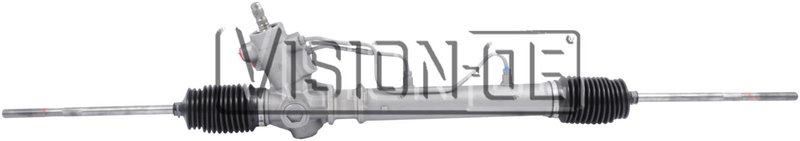

BBB Industries 311-0138 Rack and Pinion Assembly

Overview of BBB Industries Reman Rack and Pinion 311-0138

The BBB Industries Reman Rack and Pinion Assembly 311-0138 is designed for precise steering control in select Geo and Toyota vehicles. This remanufactured hydraulic rack and pinion unit is compatible with Geo Prizm and Toyota Corolla models, providing reliable steering performance.

• Remanufactured hydraulic rack and pinion assembly
• Includes inner tie rods for streamlined installation
• Input shaft diameter: 0.688 inches (17.463 mm)
• Input shaft length: 1.563 inches (39.688 mm)
• Rack length: 46 inches (1168.4 mm)
• Pressure port thread size: M16x1.50
• Return port thread size: M17x1.50
• Turns lock to lock: 3.313
• One mounting hole for secure fitment

About the Reman Rack and Pinion Product Line

The Reman Rack and Pinion line from BBB Industries focuses on remanufactured steering components that meet OEM specifications. This product line offers hydraulic rack and pinion assemblies that include critical components such as inner tie rods, ensuring compatibility and ease of installation. The 311-0138 part is part of this line, providing a cost-effective alternative to new assemblies while maintaining performance standards for Geo and Toyota vehicles.

Detailed Product Description

This remanufactured rack and pinion assembly features a hydraulic design suitable for power steering systems in Geo Prizm and Toyota Corolla models. The input shaft measures 0.688 inches in diameter and 1.563 inches in length, designed to match OEM specifications for proper fit and function. The rack length of 46 inches ensures compatibility with the steering system geometry of the specified vehicles. The assembly includes inner tie rods but does not include bushings or outer tie rods, which may need to be sourced separately depending on your vehicle's requirements. The unit has one mounting hole and uses M16x1.50 and M17x1.50 thread sizes for pressure and return ports respectively, facilitating proper hydraulic connections. The steering ratio is defined by 3.313 turns lock to lock, providing responsive steering feel.

Common Applications and Issues Addressed

• Restores precise steering control in Geo Prizm and Toyota Corolla vehicles
• Replaces worn or leaking hydraulic rack and pinion assemblies
• Eliminates excessive steering play or looseness
• Resolves steering noise caused by damaged internal components
• Addresses fluid leaks from pressure or return ports

Installation Notes and Tips

• Verify compatibility with your specific Geo Prizm or Toyota Corolla model year before installation
• Inspect and replace outer tie rods and bushings if necessary, as they are not included
• Ensure hydraulic lines match M16x1.50 and M17x1.50 thread sizes for proper connection
• Check steering alignment after installation to maintain proper handling
• Use appropriate tools to avoid damage to the input shaft and mounting points

Quality Assurance and Warranty

BBB Industries remanufactured rack and pinion assemblies undergo rigorous testing to meet OEM standards for fit, form, and function. The 311-0138 part is built to restore steering performance reliably. Warranty coverage details should be confirmed with the distributor or installer, as BBB Industries typically offers limited warranties on remanufactured steering components.
