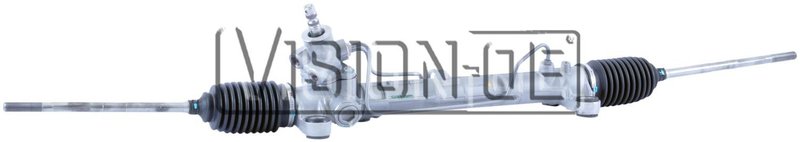

BBB Industries 311-0201 Rack and Pinion Assembly

Overview of BBB Industries Reman Rack and Pinion 311-0201

The BBB Industries Reman Rack and Pinion Assembly 311-0201 is designed for precise steering control in select Pontiac and Toyota vehicles. This remanufactured hydraulic rack and pinion unit includes essential components to ensure reliable performance and fitment for the Pontiac Vibe and Toyota Matrix models.

• Remanufactured hydraulic rack and pinion assembly
• Includes bushings and inner tie rods for complete installation
• Distance between mounting holes: 13.25 inches (336.55 mm)
• Input shaft diameter: 0.688 inches (17.463 mm), length: 1.813 inches (46.038 mm)
• Rack length: 50.5 inches (1282.7 mm) with 4 mounting holes
• Pressure port thread size: M16x1.50; return port thread size: M17x1.50
• Turns lock to lock: 3.313

Reman Rack and Pinion Product Line Details

The Reman Rack and Pinion line from BBB Industries focuses on providing remanufactured steering gear assemblies that meet OEM specifications. This product line ensures that critical components such as bushings and inner tie rods are included, offering a comprehensive solution for steering system repairs. The 311-0201 part maintains hydraulic operation characteristics suitable for vehicles originally equipped with hydraulic steering systems.

Detailed Product Description

This remanufactured rack and pinion assembly is engineered to restore steering precision and responsiveness in compatible Pontiac Vibe and Toyota Matrix vehicles. The hydraulic design supports smooth steering feel, while the included bushings and inner tie rods simplify installation and reduce the need for additional parts. The 13.25-inch distance between mounting holes and the 50.5-inch rack length ensure proper fitment and alignment within the steering system. The input shaft dimensions and thread sizes for pressure and return ports are designed to match factory specifications, facilitating a direct replacement without modification.

Common Applications and Issues Addressed

• Restores steering responsiveness and control in Pontiac Vibe and Toyota Matrix
• Replaces worn or leaking hydraulic rack and pinion assemblies
• Eliminates excessive play or looseness in steering
• Addresses noise or binding during steering operation
• Corrects uneven or difficult steering effort

Installation Notes and Tips

• Verify compatibility with Pontiac Vibe and Toyota Matrix models before installation
• Ensure all mounting holes align properly with vehicle chassis (13.25 inches apart)
• Inspect and replace outer tie rods separately, as they are not included
• Bleed the hydraulic steering system thoroughly after installation to remove air
• Check input shaft engagement and secure all pressure and return port connections

Quality Assurance and Warranty

BBB Industries remanufactured rack and pinion assemblies undergo rigorous testing to meet OEM standards for fit, form, and function. The 311-0201 part is built to provide reliable steering performance and durability. Warranty coverage details should be confirmed with the distributor or installer, as BBB Industries typically offers limited warranties on remanufactured steering components.
