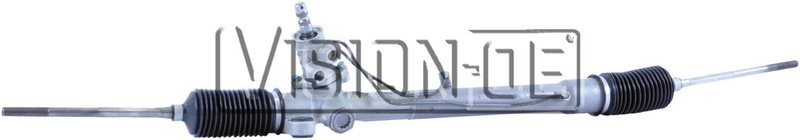

BBB Industries 311-0205 Rack and Pinion Assembly

Reman Rack and Pinion for Scion and Toyota

BBB Industries 311-0205 is a remanufactured hydraulic rack and pinion assembly for select Scion xA, Scion xB, and Toyota Echo models with power steering. It is built for direct replacement applications where steering response, rack travel, and hydraulic port sizing need to match the original system.

The BBB Industries Reman Rack and Pinion line focuses on OE-style steering replacement parts that restore factory steering geometry and hydraulic operation. Part number 311-0205 is remanufactured, includes bushings and inner tie rods, and uses a 0.75 in input shaft with M16x1.50 pressure and M17x1.50 return ports.

Key Features

• Remanufactured hydraulic rack and pinion assembly
• Includes bushings and inner tie rods
• 48.25 in rack length with 3.063 turns lock to lock
• 2 mounting holes with 3.69 in mounting-hole spacing
• Input shaft diameter: 0.75 in; input shaft length: 2 in
• Pressure port thread size: M16x1.50
• Return port thread size: M17x1.50
• Outer tie rods not included

Detailed Description

BBB Industries 311-0205 is a hydraulic rack and pinion assembly engineered for vehicles equipped with power steering. It fits 2004-2006 Scion xA, 2004-2006 Scion xB, 2004-2005 Toyota Echo, and 2003 Toyota Echo with power steering from 8/02. This part cross-references 44250-52200 and 19321038 for the same application. Use 311-0205 when replacing a worn steering rack on a Scion xA, Scion xB, or Toyota Echo and the original hydraulic connections, mounting points, and steering ratio need to align with the factory setup.

Common Problems This Part Can Address

• Excessive steering play or loose steering feel
• Hydraulic fluid leaks from the rack assembly
• Rough, inconsistent, or noisy steering operation
• Worn internal rack components affecting steering response
• Binding or uneven steering effort during turns

Installation Notes and Tips

Confirm vehicle fitment by year, make, model, and power steering configuration before installation. Verify the input shaft dimensions, mounting-hole spacing, and hydraulic port thread sizes against the original rack and pinion assembly. Because outer tie rods are not included, reuse or replace them separately as needed, and perform a professional alignment after installation.

Quality Assurance

This BBB Industries remanufactured rack and pinion assembly is built as a replacement steering component for direct-fit service on the listed applications. The remanufactured construction and included inner tie rods and bushings support a complete steering-system repair on the specified Scion and Toyota models.
