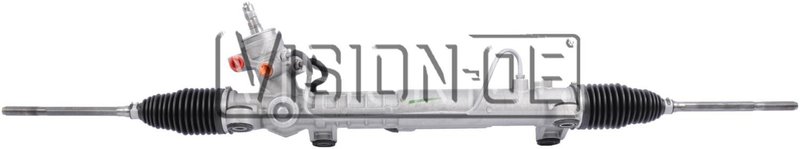

BBB Industries 311-0217 Rack and Pinion Assembly

Overview of BBB Industries Reman Rack and Pinion 311-0217

The BBB Industries Reman Rack and Pinion Assembly 311-0217 is designed specifically for Toyota Celica models. This remanufactured hydraulic rack and pinion unit includes essential components to restore precise steering performance and reliability.

• Remanufactured hydraulic rack and pinion assembly
• Includes bushings and inner tie rods for complete installation
• Distance between mounting holes: 17.19 inches (436.626 mm)
• Input shaft diameter: 0.75 inches (19.05 mm), length: 1.75 inches (44.45 mm)
• Rack length: 45.313 inches (1150.938 mm)
• Pressure port thread size: M16x1.50; return port thread size: M17x1.50
• Number of mounting holes: 4; turns lock to lock: 2.875

Details on the Reman Rack and Pinion Product Line

The Reman Rack and Pinion line from BBB Industries offers remanufactured steering components that meet OEM specifications. This product line focuses on restoring the original steering feel and function by including critical parts such as bushings and inner tie rods. The 311-0217 model is engineered to provide a reliable replacement for Toyota Celica vehicles requiring a hydraulic rack and pinion assembly.

Product Description and Specifications

This rack and pinion assembly is remanufactured to ensure durability and performance. It features a hydraulic design compatible with Toyota Celica steering systems. The assembly includes bushings and inner tie rods, but outer tie rods are not included. The input shaft measures 0.75 inches in diameter and 1.75 inches in length, designed to fit precisely with the vehicle’s steering column. The rack length is 45.313 inches, with mounting holes spaced 17.19 inches apart to match factory specifications. Thread sizes for pressure and return ports are M16x1.50 and M17x1.50 respectively, ensuring proper hydraulic connections. The unit has four mounting holes and offers 2.875 turns lock to lock, providing responsive steering control.

Common Applications and Problem Resolution

• Replacement for worn or leaking hydraulic rack and pinion in Toyota Celica
• Fixes excessive steering play or looseness
• Resolves uneven or difficult steering response
• Addresses noise or binding in steering mechanism
• Restores proper steering alignment and feel

Installation Notes and Tips

Ensure compatibility with Toyota Celica models before installation. The assembly includes bushings and inner tie rods, but outer tie rods must be sourced separately. Verify mounting hole alignment and hydraulic port thread sizes during installation. Proper torque specifications should be followed for mounting bolts and hydraulic connections. It is recommended to have a professional alignment performed after installation to ensure optimal steering performance.

Quality Assurance and Warranty

BBB Industries remanufactured rack and pinion assemblies undergo rigorous testing to meet OEM standards. The 311-0217 part is built to restore steering function reliably. Warranty coverage details should be confirmed with the distributor or installer, as BBB Industries typically offers limited warranties on remanufactured steering components.
