OE Quality
60-Day Returns

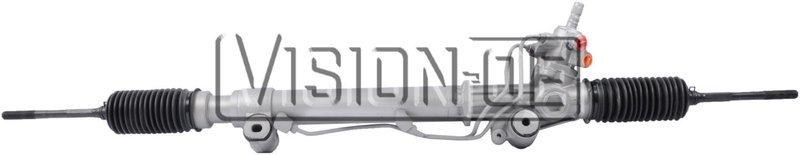

BBB Industries 311-0219 Rack and Pinion Assembly
Reman Rack and Pinion for Toyota FJ Cruiser
BBB Industries Reman Rack and Pinion 311-0219 is a hydraulic steering gear assembly for 2007-2009 Toyota FJ Cruiser models equipped with power steering. It is built as a remanufactured replacement rack and pinion with inner tie rods included and bushings included for a direct steering-system service replacement.
Key Features
- Remanufactured hydraulic rack and pinion assembly
- Fits 2007-2009 Toyota FJ Cruiser, power steering applications
- Inner tie rods included; outer tie rods not included
- Bushings included
- Rack length: 49.5 in. (1257.3 mm)
- Distance between mounting holes: 15.5 in. (393.7 mm)
- Input shaft diameter: 0.75 in. (19.05 mm)
- Turns lock to lock: 3.063
- Pressure port thread size: M16x1.50
- Return port thread size: M17x1.50
Product Details
BBB Industries 311-0219 is part of the Reman Rack and Pinion line, a remanufactured steering gear program focused on OE-style replacement fit and function. This hydraulic rack and pinion assembly is specified for the Toyota FJ Cruiser and uses the listed port thread sizes, mounting-hole spacing, and input shaft dimensions to match the original steering layout. This part cross-references 19321048 for the same application.
Common Steering Issues This Part Can Address
- Excessive steering play or loose steering feel
- Fluid leakage from the rack and pinion assembly
- Binding, rough steering, or inconsistent steering response
- Worn internal rack components affecting steering precision
- Noise or vibration traced to the steering gear
Installation Notes and Tips
Verify hydraulic line thread sizes, mounting-hole spacing, and input shaft dimensions before installation. Because this assembly is for power steering applications, the hydraulic system should be inspected for contamination, leaks, and worn hoses before the new rack is installed. A professional alignment is required after replacement, and the steering system should be bled according to the vehicle service procedure.
Quality Assurance
BBB Industries remanufactures steering components to restore serviceable OE-style operation using application-specific specifications. For a 2007-2009 Toyota FJ Cruiser rack and pinion replacement, 311-0219 provides the listed fitment and dimensional details needed for a proper steering repair.
| Brand | BBB Industries |
|---|---|
| Part Number | 311-0219 |
| Position | Reman Rack and Pinion |
| Bushings Included | Yes |
| Distance Between Mounting Holes (In) | 15.5 |
| Distance Between Mounting Holes (mm) | 393.7 |
| Hydraulic or Electric | Hydraulic |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter (In) | 0.75 |
| Input Shaft Diameter (mm) | 19.05 |
| Input Shaft Length (In) | 1.687 |
| Input Shaft Length (mm) | 42.85 |
| New or Remanufactured | Remanufactured |
| Number of Mounting Holes | 2 |
| Outer Tie Rods Included | No |
| Pressure Port Thread Size | M16x1.50 |
| Rack Length (In) | 49.5 |
| Rack Length (mm) | 1257.3 |
| Return Port Thread Size | M17x1.50 |
| Turns Lock To Lock | 3.063 |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Toyota | FJ Cruiser | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2008 | Toyota | FJ Cruiser | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2007 | Toyota | FJ Cruiser | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
