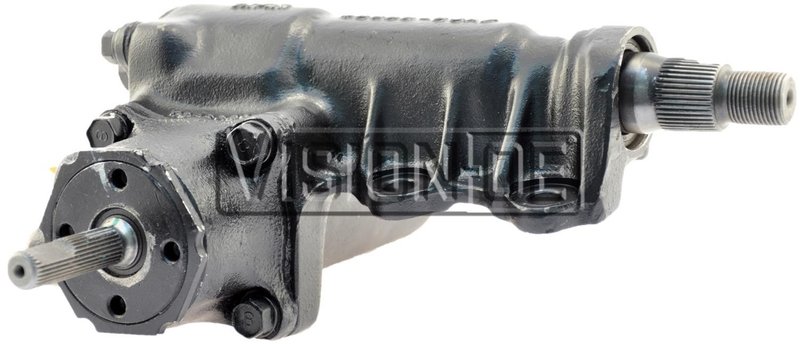

BBB Industries 503-0161 Steering Gear
| Brand | BBB Industries 503-0161 |
|---|---|
| Output Shaft Diameter | 1.18 |
| Output Shaft Diameter | 29.97 |
| Input Shaft Diameter | 0.58 |
| Input Shaft Diameter | 14.73 |
| Inlet Size | M18x1.50 |
| Input Shaft Spline Count | 30 |
| Installation Kit Included | Yes |
| Manual or Power | Electric |
| New or Remanufactured | Remanufactured |
| Number of Mounting Holes | 3 |
| Outlet Size | M16x1.50 |
| Output Shaft Spline Count | 42 |
| Pressure Port Thread Size | M18x1.50 |
| Return Port Thread Size | M16x1.50 |
| Turns Lock To Lock | 4 |
| Product line | Reman Steering Gear |
| Fits | Chevrolet, Geo, GMC, and Suzuki · 23 vehicles |
Remanufactured unit. Restored steering gear offers a cost-conscious replacement option.
Electric assist. Built for electric steering systems.
Installation kit included. Helps streamline the replacement process.
Cross-references 19321406 for the same application. See all 1.
Reman Steering Gear for Tracker, Sidekick, and X-90
BBB Industries Reman Steering Gear Part Number 503-0161 is a remanufactured electric steering gear built for power steering applications on select Chevrolet Tracker, Geo Tracker, GMC Tracker, Suzuki Sidekick, and Suzuki X-90 models. It is specified with OE-style thread sizes, shaft dimensions, and spline counts to support direct replacement service on the listed vehicles.
Key Features
- Remanufactured electric steering gear for power steering systems
- Output shaft diameter: 29.97 mm (1.18 in.)
- Input shaft diameter: 14.73 mm (0.58 in.)
- Input shaft spline count: 30
- Output shaft spline count: 42
- Pressure port thread size: M18x1.50
- Return port thread size: M16x1.50
- Inlet size: M18x1.50
- Outlet size: M16x1.50
- Turns lock to lock: 4
- Installation kit included: Yes
- Three mounting holes
Product Details
BBB Industries Reman Steering Gear 503-0161 is a remanufactured steering gear assembly for electric power steering applications. The unit is built around the listed shaft diameters, spline counts, and port thread sizes to match the steering connection points used on the supported Chevrolet Tracker, Geo Tracker, GMC Tracker, Suzuki Sidekick, and Suzuki X-90 platforms. This part cross-references OE number 19321406 for the same application.
What It Helps Address
- Excessive steering play or looseness
- Binding, rough steering effort, or inconsistent steering response
- Fluid connection mismatch during steering gear replacement
- Worn steering gear internals on power steering-equipped vehicles
- Replacement needs on vehicles with damaged mounting or spline interfaces
Installation Notes
- Compatible with vehicles equipped with power steering only.
- Verify shaft diameter, spline count, and port thread sizes before installation.
- Confirm the vehicle uses the listed electric steering gear configuration.
- Use the included installation kit during replacement service.
- After installation, perform a steering system inspection and alignment check.
Quality Assurance
BBB Industries reman steering components are rebuilt to support service replacement on the specified applications. Part Number 503-0161 is a remanufactured unit intended for direct-fit service on the listed models when the vehicle configuration matches the published specifications.
| Year | Make | Model | Notes |
|---|---|---|---|
| 1998 | Chevrolet | Tracker | Compatible with vehicles equipped with power steering.; Reman Steering Gear |
| 1998 | Suzuki | Sidekick | Compatible with vehicles equipped with power steering.; Reman Steering Gear |
| 1998 | Suzuki | X-90 | Compatible with vehicles equipped with power steering.; Reman Steering Gear |
| 1997 | Geo | Tracker | Compatible with vehicles equipped with power steering.; Reman Steering Gear |
| 1997 | Suzuki | Sidekick | Compatible with vehicles equipped with power steering.; Reman Steering Gear |
| 1997 | Suzuki | X-90 | Compatible with vehicles equipped with power steering.; Reman Steering Gear |
| 1996 | Geo | Tracker | Compatible with vehicles equipped with power steering.; Reman Steering Gear |
| 1996 | Suzuki | Sidekick | Compatible with vehicles equipped with power steering.; Reman Steering Gear |
| 1996 | Suzuki | X-90 | Compatible with vehicles equipped with power steering.; Reman Steering Gear |
| 1995 | Geo | Tracker | Compatible with vehicles equipped with power steering.; Reman Steering Gear |
| 1995 | Suzuki | Sidekick | Compatible with vehicles equipped with power steering.; Reman Steering Gear |
| 1994 | Geo | Tracker | Compatible with vehicles equipped with power steering.; Reman Steering Gear |
| 1994 | Suzuki | Sidekick | Compatible with vehicles equipped with power steering.; Reman Steering Gear |
| 1993 | Geo | Tracker | Compatible with vehicles equipped with power steering.; Reman Steering Gear |
| 1993 | Suzuki | Sidekick | Compatible with vehicles equipped with power steering.; Reman Steering Gear |
| 1992 | Geo | Tracker | Compatible with vehicles equipped with power steering.; Reman Steering Gear |
| 1992 | Suzuki | Sidekick | Compatible with vehicles equipped with power steering.; Reman Steering Gear |
| 1991 | Chevrolet | Tracker | Compatible with vehicles equipped with power steering.; Reman Steering Gear |
| 1991 | Geo | Tracker | Compatible with vehicles equipped with power steering.; Reman Steering Gear |
| 1991 | GMC | Tracker | Compatible with vehicles equipped with power steering.; Reman Steering Gear |
| 1990 | Chevrolet | Tracker | Compatible with vehicles equipped with power steering.; Reman Steering Gear |
| 1990 | Geo | Tracker | Compatible with vehicles equipped with power steering.; Reman Steering Gear |
| 1990 | GMC | Tracker | Compatible with vehicles equipped with power steering.; Reman Steering Gear |
| No rows match your filter. | |||
