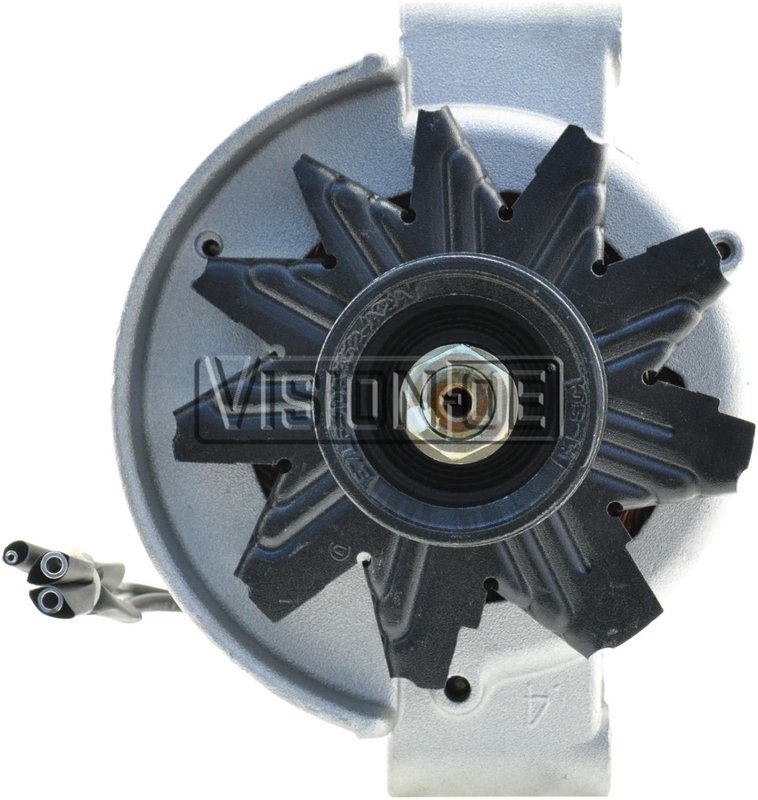

BBB Industries 7746-2 Alternator
| Brand | BBB Industries 7746-2 |
|---|---|
| Amperage Rating | 80 |
| AC Tap | No |
| Brushless Design | No |
| Cooling Method | Air |
| Decoupled Or Clutch Pulley | No |
| External Fan Included | Yes |
| Fan Type | External |
| Number Of Pulley Grooves | 6 |
| OE Manufacturer | Ford |
| One Wire Capable | No |
| Outside Pulley Diameter (in) | 2-11/16 |
| Outside Pulley Diameter (mm) | 68 |
| Plug Clock Position | 2 |
| Polarity | Negative |
| Pulley Belt Type | Serpentine |
| Pulley Included | Yes |
| Pulley Type | Conventional |
| Rotation Direction | Clockwise |
| Series | 2g |
| Voltage (V) | 12 |
| Voltage Regulator Type | Internal |
| Product line | REMAN ALTERNATOR |
| Fits | Ford · 4 vehicles |
Remanufactured unit. Built as a reman alternator for cataloged charging-system replacement.
OE manufacturer reference. Uses Ford-based design details for application matching.
Pulley included. Conventional six-groove pulley supports serpentine belt setups.
Cross-references F0PF-10346-AA, F0PF-10346-BA and F0PZ-10346-A for the same application. See all 7.
Reman Alternator Overview
This BBB Industries reman alternator is built for 12-volt charging systems and uses an internal voltage regulator for stable electrical output. It is a fitment-based replacement for select Ford applications and carries part number 7746-2.
Key Features
- 80-amp output for standard charging-system replacement needs.
- Air-cooled design with an external fan for heat management.
- Conventional pulley with six grooves for serpentine belt applications.
- Clockwise rotation and negative polarity configuration.
- OE manufacturer reference: Ford.
- Part number 7746-2 for catalog and fitment matching.
Detailed Description
BBB Industries 7746-2 is a remanufactured alternator engineered around a 2G series design with a 12-volt, internal-regulator layout. The unit includes a pulley and external fan, and it is configured with a 2 o'clock plug clock position, making it important to verify connector orientation before installation. This alternator is listed for 1990-1991 Ford Aerostar and 1990-1991 Ford Ranger applications, both with 80-amp charging output. For buyers searching for a Ford Ranger alternator or Ford Aerostar alternator, 7746-2 provides a direct catalog match for the specified fitment.
This part cross-references Ford numbers F0PF-10346-AA and F0PZ-10346-A for the same application.
What It Helps Resolve
- Low charging output from a worn alternator.
- Battery warning light caused by charging-system failure.
- Electrical instability from an aging internal regulator.
- Belt-driven charging issues tied to pulley wear or mismatch.
Installation Notes
Confirm amperage, pulley groove count, rotation direction, plug clock position, and belt type before installation. This alternator is configured for serpentine belt use and clockwise rotation, so connector and belt alignment should be checked against the original unit. Verify fitment by year, make, and model before ordering.
Quality Assurance
BBB Industries remanufactured electrical components are built to meet cataloged application requirements and OE-style configuration details. Part number 7746-2 should be matched to the vehicle's original charging-system specifications for proper installation and operation.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 1991 | Ford | Aerostar | 4.0L | V6 | 80 Amps; REMAN ALTERNATOR |
| 1991 | Ford | Ranger | 4.0L | V6 | 80 Amps; REMAN ALTERNATOR |
| 1990 | Ford | Aerostar | 4.0L | V6 | 80 Amps; REMAN ALTERNATOR |
| 1990 | Ford | Ranger | 4.0L | V6 | 80 Amps; REMAN ALTERNATOR |
