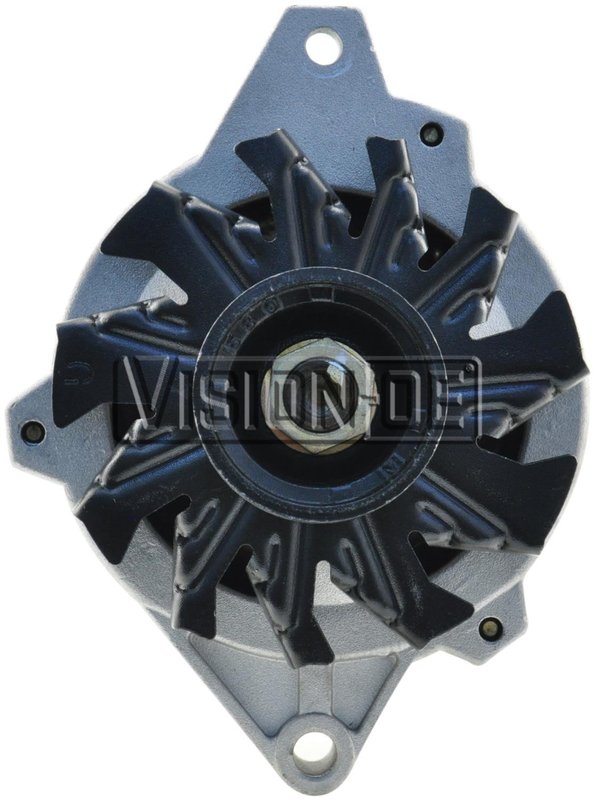

BBB Industries 7804-11 Alternator
Reman Alternator for 1986 Corvette
BBB Industries 7804-11 is a remanufactured 12-volt alternator built for the 1986 Chevrolet Corvette. It delivers 105 amps and uses an internal voltage regulator, external fan, and 6-groove serpentine pulley setup for OE-style charging system service.
Key Features
- 105-amp amperage rating for charging system replacement
- Reman alternator from BBB Industries REMAN ALTERNATOR line
- 12-volt unit with internal voltage regulator
- Delco/Delphi OE manufacturer reference
- External fan included with air cooling
- 6-groove serpentine pulley, pulley included
- Clockwise rotation with negative polarity
- CS130 series design with 11 o'clock plug clock position
Product Details
The BBB Industries 7804-11 alternator is a remanufactured charging component for the 1986 Chevrolet Corvette. It is built to match the CS130 series configuration and uses a conventional pulley with a 2-1/16 inch outside diameter, making it a direct-fit electrical replacement for vehicles originally equipped with Delco/Delphi-style charging hardware. This part cross-references 1105678 and 10463323 for the same application.
BBB Industries’ REMAN ALTERNATOR line focuses on remanufactured electrical components for charging-system service, giving technicians a replacement option that aligns with OE-style fitment and connector layout. For 1986 Chevrolet Corvette alternator replacement needs, part number 7804-11 provides the specified amperage and pulley configuration in one assembly.
Common Issues This Part Can Address
- Low battery charge caused by alternator output loss
- Charging warning light triggered by alternator failure
- Dim lights or electrical instability at idle
- Noise or wear related to a failing pulley or fan assembly
- Starting problems caused by insufficient charging system performance
Installation Notes
Verify the plug clock position, pulley groove count, rotation direction, and amperage rating before installation. Confirm the vehicle uses the 1986 Chevrolet Corvette charging-system configuration with a serpentine belt and Delco/Delphi-style alternator layout. Inspect the belt, electrical connectors, and mounting points during replacement to ensure proper charging performance after installation.
Quality Assurance
This remanufactured alternator is built for electrical charging-system replacement and is specified with OE manufacturer reference data, internal regulation, and application-matched fitment for the 1986 Chevrolet Corvette.
| Brand | BBB Industries |
|---|---|
| Part Number | 7804-11 |
| Position | REMAN ALTERNATOR |
| Amperage Rating | 105 |
| AC Tap | No |
| Brushless Design | No |
| Cooling Method | Air |
| Decoupled Or Clutch Pulley | No |
| External Fan Included | Yes |
| Fan Type | External |
| Number Of Pulley Grooves | 6 |
| OE Manufacturer | Delco/delphi |
| One Wire Capable | No |
| Outside Pulley Diameter (in) | 2-1/16 |
| Outside Pulley Diameter (mm) | 52 |
| Plug Clock Position | 11 |
| Polarity | Negative |
| Pulley Belt Type | Serpentine |
| Pulley Included | Yes |
| Pulley Type | Conventional |
| Rotation Direction | Clockwise |
| Series | Cs130 |
| Voltage (V) | 12 |
| Voltage Regulator Type | Internal |
This part fits 1 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1986 | Chevrolet | Corvette | 5.7L | V8 | N/A | 105 Amps; REMAN ALTERNATOR |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
