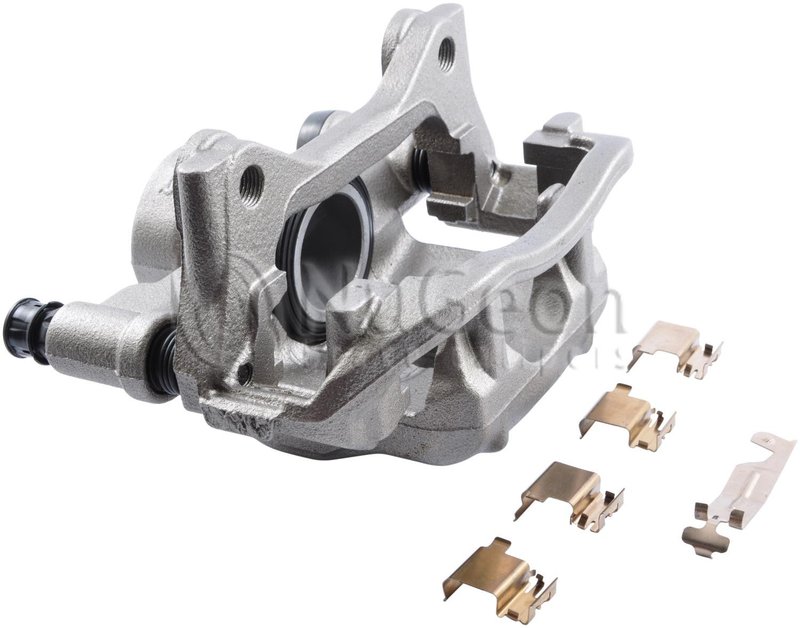

BBB Industries 99-17787B Disc Brake Caliper - Rear Right

Overview of BBB Industries Reman Caliper w/ Installation Hardware

The BBB Industries Reman Caliper w/ Installation Hardware (part number 99-17787B) is designed specifically for Ram ProMaster 1500, 2500, and 3500 models. This remanufactured disc brake caliper offers reliable braking performance with included installation hardware for a streamlined replacement process.

• Remanufactured cast iron disc brake caliper with rust preventative finish
• Includes caliper slides, bracket, bleeder screw, dust boots, and installation hardware
• Compatible with Ram ProMaster 1500, 2500, and 3500 models
• Steel piston with 52mm (2 inch) diameter for consistent braking force
• Inlet fitting type: plug with M10-1.0 thread size

Product Line Details: Reman Caliper w/ Installation Hardware

The Reman Caliper w/ Installation Hardware line from BBB Industries focuses on providing remanufactured brake calipers that come complete with necessary installation hardware. This ensures a more efficient installation process by including components such as the caliper bracket and banjo bolt with copper crush washers. This product line is engineered to meet OEM specifications for fit and function, making it a practical choice for maintaining braking systems on Ram ProMaster vehicles.

Technical Description and Features

This remanufactured disc brake caliper is constructed from durable cast iron and finished with a rust preventative coating to extend service life. It features a single steel piston with a 52mm outside diameter, designed to deliver reliable braking pressure. The caliper includes caliper slides and a mounting bracket (cast number 86500) to ensure proper alignment and operation. The inlet port uses a plug fitting with an M10x1.0 thread size, and the bleeder screw (M10-1.0 x 28.8) is included for brake fluid bleeding during installation. Dust boots are provided to protect internal components from contaminants. Note that brake pads and anti-squeal shims are not included.

Compatible Vehicles and Applications

• Ram ProMaster 1500
• Ram ProMaster 2500
• Ram ProMaster 3500

This caliper is designed to replace worn or damaged front or rear disc brake calipers on these Ram ProMaster models, restoring proper braking function and safety.

Common Issues Addressed by This Caliper

• Brake fluid leaks from damaged or worn caliper seals
• Uneven brake pad wear due to caliper slide malfunction
• Reduced braking performance caused by piston corrosion or sticking
• Brake noise related to caliper hardware failure
• Brake drag from seized caliper components

Installation Notes and Tips

Installation of the 99-17787B caliper should be performed by a qualified technician familiar with Ram ProMaster brake systems. The included installation hardware simplifies the process, but brake pads must be sourced separately. Ensure the brake system is properly bled using the included bleeder screw to remove air and maintain hydraulic integrity. Inspect mounting surfaces and clean thoroughly before installation. Torque all bolts to manufacturer specifications to ensure safe operation.

Quality Assurance and Warranty

BBB Industries remanufactured calipers undergo rigorous testing to meet OEM standards for fit, form, and function. The rust preventative finish and inclusion of key hardware components support long-term reliability. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary by region.
