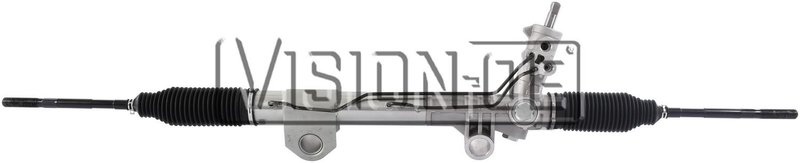

BBB Industries N102-0170 Rack and Pinion Assembly
| Brand | BBB Industries N102-0170 |
|---|---|
| "Hydraulic, Electric or Manual Steering" | Hydraulic |
| Bushings Included | No |
| Distance Between Front Mounting Holes (In) | 11.5 |
| Distance Between Front Mounting Holes (mm) | 294 |
| Distance Between Mounting Holes (In) | 11.625 |
| Distance Between Mounting Holes (mm) | 295.275 |
| Hydraulic or Electric | Hydraulic |
| Inner Tie Rod Length (In) | 14.2 |
| Inner Tie Rod Length (mm) | 363 |
| Inner Tie Rod Size | M18x1.50 |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter (In) | 0.70 |
| Input Shaft Diameter (mm) | 18 |
| Input Shaft Length (In) | 1.9 |
| Input Shaft Length (mm) | 49 |
| Installation Kit Included | Yes |
| New or Remanufactured | New |
| Number of Mounting Holes | 2 |
| Outer Tie Rods Included | No |
| Pressure Port Attachment Type | O-ring |
| Pressure Port Size | M18x1.50 |
| Pressure Port Thread Size | M18x1.50 |
| Rack Length (In) | 54.9 |
| Rack Length (mm) | 1395 |
| Return Port Attachment Type | O-ring |
| Return Port Size | M20x1.50 |
| Return Port Thread Size | M20x1.50 |
| Turns Lock To Lock | 3 |
| Product line | New Rack and Pinion |
| Fits | Dodge · 14 vehicles |
New rack and pinion. Hydraulic design with included inner tie rods and installation kit.
O-ring port connections. Helps deliver a secure hydraulic seal at both ports.
Bolt-on installation. Two mounting holes and no bushings included for a straightforward swap.
Cross-references 19320395, 52110333AI and 52110487AC for the same application. See all 5.
BBB Industries N102-0170 Rack and Pinion
BBB Industries New Rack and Pinion N102-0170 is a new hydraulic rack and pinion assembly for select Dodge Ram trucks with power steering. It is built for direct replacement service on 2002-2006 Dodge Ram 1500, 2003-2006 Dodge Ram 2500, 2003-2006 Dodge Ram 3500, and 2006 Dodge Ram 1500 Mega Cab applications.
The BBB Industries New Rack and Pinion line focuses on replacement steering components with application-specific dimensions and included inner tie rods where specified. This N102-0170 unit is a hydraulic steering rack with O-ring pressure and return ports, making it a fitment-focused option for Ram 1500, Ram 2500, and Ram 3500 power steering repairs.
- Brand: BBB Industries New Rack and Pinion
- Part number: N102-0170
- Hydraulic rack and pinion assembly
- New, not remanufactured
- Inner tie rods included; outer tie rods not included
- Installation kit included
- Rack length: 54.9 in. (1395 mm)
- Turns lock to lock: 3
- Pressure port: M18x1.50 O-ring
- Return port: M20x1.50 O-ring
- Input shaft diameter: 0.70 in. (18 mm)
Use this rack and pinion assembly when replacing a worn hydraulic steering gear on a Dodge Ram 1500, Ram 2500, or Ram 3500 with power steering. The N102-0170 is sized with a 2-bolt mounting pattern, 11.5 in. front mounting hole spacing, and M18x1.50 inner tie rod threads to match the listed applications. This part cross-references OE numbers such as 19320395 and 52110333AI for the same application.
Common Steering Problems This Part Addresses
- Excessive steering play or loose steering feel
- Hydraulic fluid leaks at the rack, pressure port, or return port
- Uneven or inconsistent steering response
- Internal wear in the rack and pinion assembly
- Noisy steering operation caused by worn hydraulic components
Installation Notes and Tips
Confirm hydraulic steering, mounting-hole spacing, input shaft dimensions, and port thread sizes before installation. Because outer tie rods are not included, reuse or replace those components as needed during the steering repair. After installation, bleed the power steering system and verify proper alignment and steering wheel centering.
Quality Assurance
BBB Industries supplies new steering replacement components built to match listed vehicle applications and dimensional requirements. Verify fitment against the vehicle’s year, model, and steering configuration before ordering.
Fits 2002-2005 Dodge Ram 1500, power steering. Fits 2003-2006 Dodge Ram 2500, power steering. Fits 2003-2006 Dodge Ram 3500, power steering. Fits 2006 Dodge Ram 1500, power steering, Mega Cab.
| Year | Make | Model | Body Type | Drive Type | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|---|
| 2006 | Dodge | Ram 1500 | Extended Crew Cab Pickup | RWD | 5.7L | V8 | Power Steering; (Mega Cab); New Rack and Pinion |
| 2006 | Dodge | Ram 1500 | Extended Crew Cab Pickup | RWD | 4.7L | V8 | Power Steering; (Mega Cab); New Rack and Pinion |
| 2006 | Dodge | Ram 2500 | — | RWD | — | — | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2006 | Dodge | Ram 3500 | — | RWD | — | — | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2005 | Dodge | Ram 1500 | — | RWD | — | — | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2005 | Dodge | Ram 2500 | — | RWD | — | — | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2005 | Dodge | Ram 3500 | — | RWD | — | — | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2004 | Dodge | Ram 1500 | — | RWD | — | — | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2004 | Dodge | Ram 2500 | — | RWD | — | — | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2004 | Dodge | Ram 3500 | — | RWD | — | — | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2003 | Dodge | Ram 1500 | — | RWD | — | — | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2003 | Dodge | Ram 2500 | — | RWD | — | — | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2003 | Dodge | Ram 3500 | — | RWD | — | — | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2002 | Dodge | Ram 1500 | — | RWD | — | — | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
