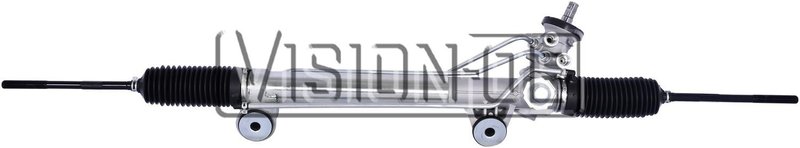

BBB Industries N103-0167 Rack and Pinion Assembly
| Brand | BBB Industries N103-0167 |
|---|---|
| Bushings Included | Yes |
| Distance Between Mounting Holes (In) | 14.88 |
| Distance Between Mounting Holes (mm) | 377.952 |
| Hydraulic or Electric | Hydraulic |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter (In) | 0.813 |
| Input Shaft Diameter (mm) | 20.638 |
| Input Shaft Length (In) | 2.125 |
| Input Shaft Length (mm) | 53.975 |
| New or Remanufactured | New |
| Number of Mounting Holes | 2 |
| Outer Tie Rods Included | No |
| Pressure Port Thread Size | M16X1.50 |
| Rack Length (In) | 50.5 |
| Rack Length (mm) | 1282.7 |
| Return Port Thread Size | M16X1.50 |
| Turns Lock To Lock | 3.375 |
| Product line | New Rack and Pinion |
| Fits | Chevrolet and GMC · 22 vehicles |
New rack and pinion. Hydraulic design with inner tie rods and bushings included.
OE direct replacement. Built as a complete steering gear assembly for straightforward installation.
3.375 turns lock to lock for responsive steering feel.
Cross-references 19133675, 19320495 and 26079794 for the same application. See all 8.
Hydraulic Rack and Pinion for Silverado and Sierra
BBB Industries New Rack and Pinion N103-0167 is a hydraulic rack and pinion assembly for select Chevrolet Silverado 1500, Silverado 1500 Classic, GMC Sierra 1500, and Sierra 1500 Classic applications. It is built as a new steering gear assembly with inner tie rods included and bushings included for direct replacement service.
Key Features
- New hydraulic rack and pinion assembly
- Inner tie rods included; outer tie rods not included
- Bushings included
- Input shaft diameter: 0.813 in. (20.638 mm)
- Input shaft length: 2.125 in. (53.975 mm)
- Rack length: 50.5 in. (1282.7 mm)
- Turns lock to lock: 3.375
- Pressure and return port thread size: M16x1.50
- Distance between mounting holes: 14.88 in. (377.952 mm)
Product Details
The BBB Industries New Rack and Pinion line focuses on replacement steering gear assemblies built for hydraulic steering systems. Part number N103-0167 is a new rack and pinion assembly with the key mounting and hydraulic dimensions needed for service on the listed Chevrolet and GMC trucks. It cross-references 19133675 and 19320495 for the same application. Use N103-0167 when replacing a worn steering rack on 1999-2006 Chevrolet Silverado 1500, 1999-2006 GMC Sierra 1500, 2007 Chevrolet Silverado 1500 Classic, or 2007 GMC Sierra 1500 Classic with power steering and without four wheel steering where noted.
What It Helps Fix
- Excessive steering play or loose steering feel
- Fluid leakage from the hydraulic rack assembly
- Hard steering or inconsistent steering response
- Worn internal rack components affecting road control
- Noisy steering operation caused by a failing steering gear
Installation Notes and Tips
- Verify hydraulic port thread size, mounting hole spacing, and input shaft dimensions before installation.
- Confirm vehicle fitment by year, make, model, and steering configuration.
- Outer tie rods are not included, so inspect existing components during service.
- Bleed the power steering system after installation to remove air from the hydraulic circuit.
- Perform a professional wheel alignment after steering component replacement.
Quality Assurance
BBB Industries supplies this as a new steering assembly for direct replacement use in the listed applications. Part number N103-0167 is specified for select Chevrolet Silverado 1500 and GMC Sierra 1500 trucks, including Classic models with power steering and the noted steering configuration.
| Year | Make | Model | Body Type | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2007 | Chevrolet | Silverado 1500 Classic | Crew Cab Pickup | RWD | N/A | Power Steering; w/o Four Wheel Steering (NYS); New Rack and Pinion |
| 2007 | Chevrolet | Silverado 1500 Classic | Extended Cab Pickup | RWD | N/A | Power Steering; w/o Four Wheel Steering (NYS); New Rack and Pinion |
| 2007 | Chevrolet | Silverado 1500 Classic | Standard Cab Pickup | RWD | N/A | Power Steering; w/o Four Wheel Steering (NYS); New Rack and Pinion |
| 2007 | GMC | Sierra 1500 Classic | Crew Cab Pickup | RWD | N/A | Power Steering; w/o Four Wheel Steering (NYS); New Rack and Pinion |
| 2007 | GMC | Sierra 1500 Classic | Extended Cab Pickup | RWD | N/A | Power Steering; w/o Four Wheel Steering (NYS); New Rack and Pinion |
| 2007 | GMC | Sierra 1500 Classic | Standard Cab Pickup | RWD | N/A | Power Steering; w/o Four Wheel Steering (NYS); New Rack and Pinion |
| 2006 | Chevrolet | Silverado 1500 | — | RWD | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2006 | GMC | Sierra 1500 | — | RWD | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2005 | Chevrolet | Silverado 1500 | — | RWD | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2005 | GMC | Sierra 1500 | — | RWD | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2004 | Chevrolet | Silverado 1500 | — | RWD | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2004 | GMC | Sierra 1500 | — | RWD | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2003 | Chevrolet | Silverado 1500 | — | RWD | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2003 | GMC | Sierra 1500 | — | RWD | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2002 | Chevrolet | Silverado 1500 | — | RWD | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2002 | GMC | Sierra 1500 | — | RWD | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2001 | Chevrolet | Silverado 1500 | — | RWD | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2001 | GMC | Sierra 1500 | — | RWD | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2000 | Chevrolet | Silverado 1500 | — | RWD | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2000 | GMC | Sierra 1500 | — | RWD | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 1999 | Chevrolet | Silverado 1500 | — | RWD | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 1999 | GMC | Sierra 1500 | — | RWD | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
