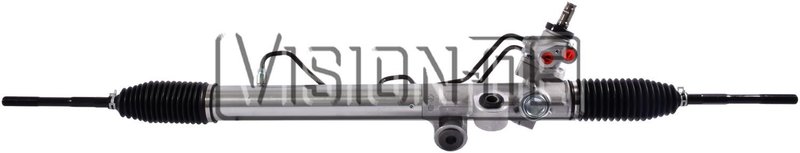

BBB Industries N103-0264 Rack and Pinion Assembly
| Brand | BBB Industries N103-0264 |
|---|---|
| Bushings Included | Yes |
| Distance Between Mounting Holes (In) | 2.88 |
| Distance Between Mounting Holes (mm) | 73.152 |
| Hydraulic or Electric | Hydraulic |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter (In) | 0.75 |
| Input Shaft Diameter (mm) | 19.05 |
| Input Shaft Length (In) | 1.875 |
| Input Shaft Length (mm) | 47.625 |
| New or Remanufactured | New |
| Number of Mounting Holes | 2 |
| Outer Tie Rods Included | No |
| Pressure Port Thread Size | 11mm |
| Rack Length (In) | 48.688 |
| Rack Length (mm) | 1236.663 |
| Return Port Thread Size | 11mm |
| Turns Lock To Lock | 3.25 |
| Product line | New Rack and Pinion |
| Fits | Hummer · 7 vehicles |
New rack and pinion. Freshly built hydraulic assembly for precise steering response.
Inner tie rods included. Conveniently supplied with bushings for a more complete install.
3.25 turns lock to lock. Balanced steering feel with responsive control.
Cross-references 19320558 and 94725465 for the same application. See all 2.
Hydraulic Rack and Pinion for Hummer H3 and H3T
BBB Industries New Rack and Pinion N103-0264 is a hydraulic steering rack assembly built for select Hummer H3 and H3T applications with power steering. It includes inner tie rods and bushings, and it is specified as a new unit for direct replacement service.
Compatible with 2006-2010 Hummer H3 and 2009-2010 Hummer H3T, this rack and pinion assembly is built around the listed OE-style dimensions and port sizes for a proper steering-system match. The BBB Industries New Rack and Pinion line focuses on replacement steering components for vehicles that need a service-ready assembly.
Key Features
- Brand: BBB Industries
- Brand line: New Rack and Pinion
- Part number: N103-0264
- Hydraulic rack and pinion assembly
- New replacement unit
- Inner tie rods included
- Bushings included
- 2 mounting holes with 2.88 in. spacing
- 11 mm pressure port and 11 mm return port thread sizes
- 3.25 turns lock to lock
- Rack length: 48.688 in. (1236.663 mm)
Detailed Description
BBB Industries N103-0264 is a hydraulic rack and pinion assembly for steering systems that use power steering. It features a 0.75 in. input shaft diameter, 1.875 in. input shaft length, and a rack length of 48.688 in., with inner tie rods included and outer tie rods not included. The assembly is listed with a 2-bolt mounting pattern, 2.88 in. between mounting holes, and 11 mm pressure and return port thread sizes.
This part cross-references OE numbers 19320558 and 94725465 for the same application. For shoppers searching for a Hummer H3 rack and pinion or a Hummer H3T steering rack replacement, N103-0264 provides the specified hydraulic configuration for the listed vehicles.
What This Part Helps Address
- Excessive steering play or looseness
- Fluid leakage from the steering rack assembly
- Rough or inconsistent steering response
- Worn internal rack components in a hydraulic steering system
- Replacement needs after steering gear wear or damage
Installation Notes and Tips
Verify power steering equipment and tie rod diameter before installation. Confirm the input shaft dimensions, mounting-hole spacing, and port thread sizes against the removed unit to ensure the correct Hummer H3 or H3T steering rack replacement. After installation, the steering system should be inspected, filled with the correct fluid, bled, and aligned according to vehicle service procedures.
Quality Assurance
BBB Industries supplies new steering components under its New Rack and Pinion product line for replacement service. This part is built to the listed specifications for the confirmed Hummer H3 and H3T applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2010 | Hummer | H3 | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2010 | Hummer | H3T | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2009 | Hummer | H3 | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2009 | Hummer | H3T | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2008 | Hummer | H3 | N/A | Power Steering; w/ 16mm Diameter Tie Rods; New Rack and Pinion |
| 2007 | Hummer | H3 | N/A | Power Steering; w/ 16mm Diameter Tie Rods; New Rack and Pinion |
| 2006 | Hummer | H3 | N/A | Power Steering; w/ 16mm Diameter Tie Rods; New Rack and Pinion |
