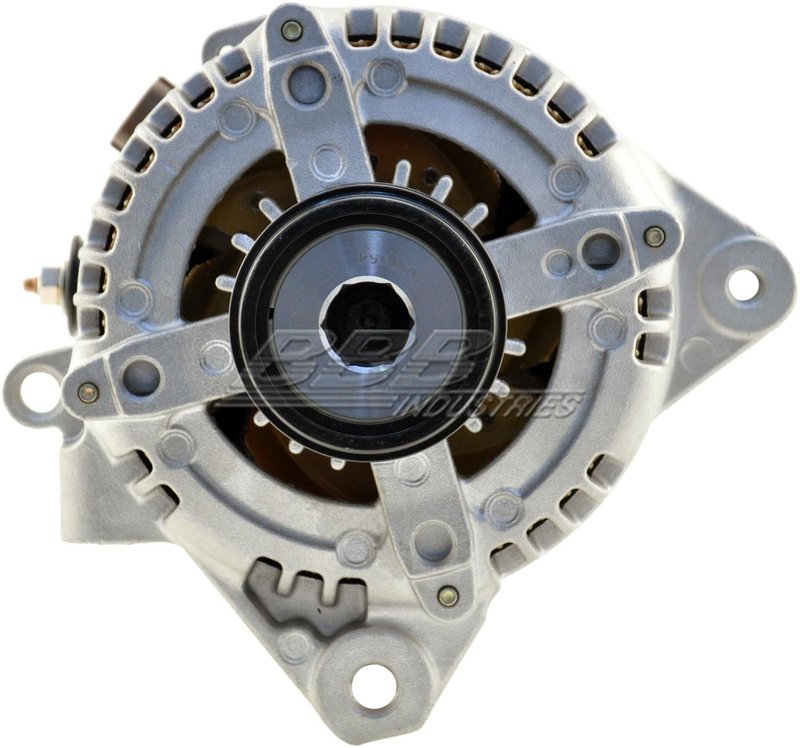

BBB Industries N11201 Alternator
| Brand | BBB Industries N11201 |
|---|---|
| AC Tap | No |
| Amperage Rating | 100 |
| Brushless Design | No |
| Cooling Method | Air |
| Decoupled Or Clutch Pulley | Yes |
| Fan Type | Internal |
| Number Of Pulley Grooves | 7 |
| OE Manufacturer | Nippondenso |
| One Wire Capable | No |
| Outside Pulley Diameter (in) | 2-3/8 |
| Outside Pulley Diameter (mm) | 61 |
| Plug Clock Position | 2 |
| Polarity | Negative |
| Pulley Belt Type | Serpentine |
| Pulley Included | Yes |
| Pulley Type | Decoupler |
| Rotation Direction | Clockwise |
| Voltage (V) | 12 |
| Voltage Regulator Type | Internal |
| Product line | NEW ALTERNATOR |
| Fits | Toyota · 3 vehicles |
OE direct replacement. Built to match Nippondenso charging-system specifications.
Decoupler pulley. Helps smooth belt operation and reduce vibration.
Internal regulator. Integrated voltage control simplifies the charging system.
Cross-references 27060-28300 and 104210-4790 for the same application. See all 2.
BBB Industries N11201 Alternator for Toyota RAV4
BBB Industries NEW ALTERNATOR N11201 is a 12-volt, 100-amp replacement alternator built for 2006-2008 Toyota RAV4 applications. It uses an internal voltage regulator, air cooling, and a serpentine belt pulley setup with a decoupler pulley for OE-style charging system operation.
Key Features
- 100 amp output for Toyota RAV4 charging system replacement
- 12V alternator with internal voltage regulator
- Air-cooled design with internal fan
- Decoupler pulley with 7-groove serpentine belt drive
- Clockwise rotation and negative polarity
- OE manufacturer reference: Nippondenso
- Part number N11201 for direct catalog lookup
Product Details
This BBB Industries NEW ALTERNATOR line part is built for drivers needing a replacement alternator that matches OE-style electrical and pulley specifications. The N11201 uses a 2-3/8 in. (61 mm) outside pulley diameter, a plug clock position of 2, and a pulley included configuration to support proper belt alignment and charging performance in the 2006-2008 Toyota RAV4. This part cross-references Toyota 27060-28300 and Denso 104210-4790 for the same application.
Compatible With 2006-2008 Toyota RAV4, N/A. The N11201 is a fitment-based replacement for the Toyota RAV4 charging system where a 100-amp alternator is specified. Use part number N11201 when verifying catalog match, and confirm the OE-style Nippondenso reference before installation.
Common Problems This Part Can Address
- Battery warning light caused by alternator output loss
- Low charging voltage at the battery
- Dim lights or electrical instability while driving
- Noise from a worn alternator pulley or internal components
- Charging system failure on a 2006-2008 Toyota RAV4
Installation Notes and Tips
Verify the vehicle’s original alternator amperage, pulley style, connector clock position, rotation direction, and belt type before installation. This unit is configured for a serpentine belt system with a decoupler pulley and internal regulator, so matching the OE electrical and mounting details is important for proper operation. Confirm fitment by year, make, model, and part number N11201 before replacing the original unit.
Quality Assurance
BBB Industries NEW ALTERNATOR components are cataloged with OE reference data to support accurate replacement selection. For this application, the listed OE manufacturer reference is Nippondenso, and the alternator specifications are provided to help match the original charging system requirements.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2008 | Toyota | RAV4 | 2.4L | L4 | N/A | 100 Amps - suitable for alternators with this amperage output; NEW ALTERNATOR |
| 2007 | Toyota | RAV4 | 2.4L | L4 | N/A | 100 Amps - suitable for alternators with this amperage output; NEW ALTERNATOR |
| 2006 | Toyota | RAV4 | 2.4L | L4 | N/A | 100 Amps - suitable for alternators with this amperage output; NEW ALTERNATOR |
| No rows match your filter. | ||||||
