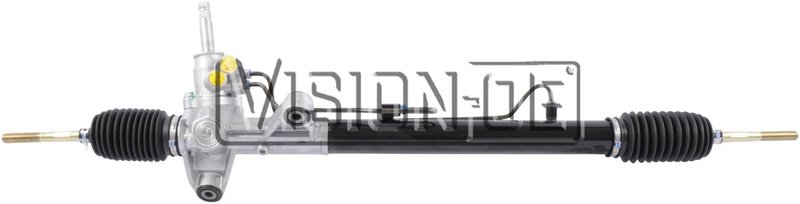

BBB Industries N305-0120 Rack and Pinion Assembly
| Brand | BBB Industries N305-0120 |
|---|---|
| Bushings Included | Yes |
| Hydraulic or Electric | Hydraulic |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter (In) | 0.691 |
| Input Shaft Diameter (mm) | 17.54 |
| Input Shaft Length (In) | 1.125 |
| Input Shaft Length (mm) | 28.575 |
| New or Remanufactured | New |
| Number of Mounting Holes | 2 |
| Outer Tie Rods Included | No |
| Pressure Port Thread Size | M16X1.50 |
| Rack Length (In) | 41.75 |
| Turns Lock To Lock | 3.625 |
| Product line | New Rack and Pinion |
| Fits | Acura and Honda · 20 vehicles |
New rack and pinion. Hydraulic design with bushings and inner tie rods included.
Direct replacement. Built as a complete rack and pinion assembly for straightforward service.
Precise steering response. 3.625 turns lock to lock for controlled, predictable handling.
Cross-references 53010-S04-A51, 53010-S04-A54 and 53010-S04-J51 for the same application. See all 7.
Hydraulic Rack and Pinion for Civic and EL
BBB Industries N305-0120 is a new hydraulic rack and pinion assembly for power steering applications. It is built for 1996-2000 Honda Civic and 1997-2000 Acura EL models with power steering, with inner tie rods and bushings included for a complete steering gear replacement.
Key Features
- New rack and pinion assembly, not remanufactured
- Hydraulic steering design for power steering systems
- Inner tie rods included; outer tie rods not included
- Bushings included for mounting support
- Pressure port thread size: M16x1.50
- Input shaft diameter: 0.691 in. (17.54 mm)
- Input shaft length: 1.125 in. (28.575 mm)
- Rack length: 41.75 in.
- Turns lock to lock: 3.625
- Two mounting holes
Detailed Description
The BBB Industries New Rack and Pinion line focuses on replacement steering gear assemblies built for direct-fit service. Part number N305-0120 is a hydraulic rack and pinion assembly for Honda Civic and Acura EL vehicles equipped with power steering, covering 1996-2000 Honda Civic and 1997-2000 Acura EL applications. This part number, N305-0120, is specified with inner tie rods included, while outer tie rods are not included, making it a practical choice when replacing worn steering components in the rack assembly itself.
This part cross-references OE numbers 53010-S04-A51 and 53601-S04-A51 for the same application.
What It Helps Address
- Excessive steering play or looseness
- Fluid leakage from a worn hydraulic rack
- Rough, inconsistent steering response
- Clunking or binding from internal steering wear
- Restoring steering control on Honda Civic and Acura EL power steering systems
Installation Notes and Tips
Verify hydraulic port thread size, input shaft dimensions, and mounting-hole layout before installation. This rack uses a 0.691-inch input shaft diameter, M16x1.50 pressure port threads, and two mounting holes. Because outer tie rods are not included, inspect related steering linkage parts during service and replace any worn components as needed. Always confirm vehicle fitment by year, make, model, and power steering configuration before installation.
Quality Assurance
BBB Industries supplies new steering components under its New Rack and Pinion product line for service replacement applications. N305-0120 is a new assembly built to match the listed fitment and dimensional specifications for the confirmed Honda Civic and Acura EL applications.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2000 | Acura | EL | — | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2000 | Honda | Civic | LX | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2000 | Honda | Civic | EX | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2000 | Honda | Civic | CX | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2000 | Honda | Civic | GX | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2000 | Honda | Civic | DX | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2000 | Honda | Civic | HX | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 1999 | Acura | EL | — | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 1999 | Honda | Civic | LX | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 1999 | Honda | Civic | EX | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 1999 | Honda | Civic | CX | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 1999 | Honda | Civic | GX | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 1999 | Honda | Civic | DX | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 1999 | Honda | Civic | Value Package | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 1999 | Honda | Civic | HX | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 1998 | Acura | EL | — | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 1998 | Honda | Civic | — | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 1997 | Acura | EL | — | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 1997 | Honda | Civic | — | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 1996 | Honda | Civic | — | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
