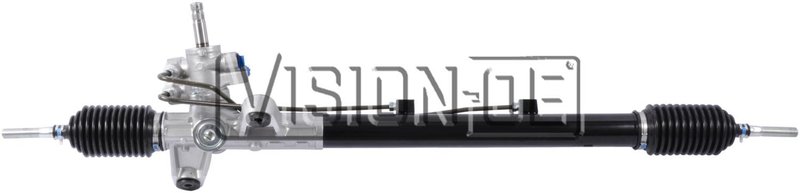

BBB Industries N305-0158 Rack and Pinion Assembly
| Brand | BBB Industries N305-0158 |
|---|---|
| Bushings Included | Yes |
| Distance Between Mounting Holes (In) | 3.981 |
| Distance Between Mounting Holes (mm) | 101.117 |
| Hydraulic or Electric | Hydraulic |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter (In) | 0.694 |
| Input Shaft Diameter (mm) | 17.628 |
| Input Shaft Length (In) | 2.75 |
| Input Shaft Length (mm) | 69.85 |
| New or Remanufactured | New |
| Number of Mounting Holes | 2 |
| Outer Tie Rods Included | No |
| Pressure Port Thread Size | M16X1.50 |
| Rack Length (In) | 41.313 |
| Rack Length (mm) | 1049.338 |
| Return Port Thread Size | M16X1.50 |
| Turns Lock To Lock | 2.625 |
| Product line | New Rack and Pinion |
| Fits | Acura · 5 vehicles |
New rack and pinion. Fresh replacement assembly for restoring precise steering response.
Hydraulic design. Delivers responsive steering feel with fluid-assisted operation.
Inner tie rods included. Conveniently packaged with bushings for a more complete install.
Cross-references 53010-SDA-A01, 53601-SEC-A02 and 53601-SEC-A03 for the same application. See all 7.
New Rack and Pinion for Acura TSX
BBB Industries New Rack and Pinion N305-0158 is a hydraulic steering gear assembly for 2004-2008 Acura TSX models equipped with power steering. It is built as a new replacement unit with inner tie rods included, making it a direct-fit option for restoring steering response and rack operation.
Key Features
- Brand: BBB Industries New Rack and Pinion
- Part number: N305-0158
- Fits 2004-2008 Acura TSX, N/A
- Hydraulic rack and pinion assembly
- New unit, not remanufactured
- Inner tie rods included
- Bushings included
- Pressure port thread size: M16x1.50
- Return port thread size: M16x1.50
- Turns lock to lock: 2.625
- Rack length: 41.313 in. (1049.338 mm)
Product Details
This BBB Industries rack and pinion assembly is specified for the Acura TSX platform and matches the hydraulic steering layout used on 2004-2008 Acura TSX vehicles with power steering. The N305-0158 includes inner tie rods and bushings, with a 2-bolt mounting design, 3.981 in. mounting-hole spacing, and a 0.694 in. input shaft diameter. The input shaft length measures 2.75 in., and both pressure and return ports use M16x1.50 threads for connection to the hydraulic system. This part cross-references OE-style numbers such as 53010-SDA-A01 and 53601-SEC-A02 for the same application.
Common Replacement Reasons
- Excessive steering play or loose steering feel
- Fluid leakage from the hydraulic rack assembly
- Uneven or inconsistent steering response
- Noise or binding during steering input
- Wear in the rack, seals, or internal steering components
Installation Notes
Fits 2004-2008 Acura TSX, N/A. Confirm hydraulic steering configuration, port thread size, mounting-hole spacing, and input shaft dimensions before installation. Transfer or inspect any vehicle-specific steering connections as needed during replacement, and verify alignment after the rack and pinion assembly is installed.
Quality Assurance
BBB Industries supplies this as a new steering component for direct replacement use in the Acura TSX application. The N305-0158 is built to match the listed OE-style fitment and dimensional specifications for steering system service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Acura | TSX | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2007 | Acura | TSX | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2006 | Acura | TSX | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2005 | Acura | TSX | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2004 | Acura | TSX | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
