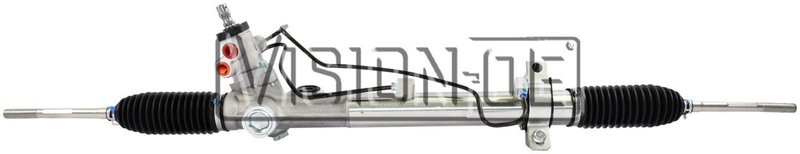

BBB Industries N311-0109 Rack and Pinion Assembly
| Brand | BBB Industries N311-0109 |
|---|---|
| Bushings Included | No |
| Distance Between Mounting Holes (In) | 3.25 |
| Distance Between Mounting Holes (mm) | 82.55 |
| Hydraulic or Electric | Hydraulic |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter (In) | 0.688 |
| Input Shaft Diameter (mm) | 17.463 |
| Input Shaft Length (In) | 1.875 |
| Input Shaft Length (mm) | 47.625 |
| New or Remanufactured | New |
| Number of Mounting Holes | 2 |
| Outer Tie Rods Included | No |
| Pressure Port Thread Size | M16X1.50 |
| Rack Length (In) | 44.5 |
| Rack Length (mm) | 1130.3 |
| Return Port Thread Size | M17X1.50 |
| Turns Lock To Lock | 3.313 |
| Product line | New Rack and Pinion |
| Fits | Toyota · 9 vehicles |
New assembly. Hydraulic rack and pinion with inner tie rods included.
Direct replacement. Built as a complete steering gear assembly for straightforward installation.
Precision steering response. 3.313 turns lock to lock for controlled, predictable handling.
Cross-references 19320954 for the same application. See all 1.
New Rack and Pinion for Tacoma
BBB Industries New Rack and Pinion N311-0109 is a new hydraulic rack and pinion assembly for select 1998-2000 Toyota Tacoma models equipped with power steering. It includes inner tie rods and is built for direct steering system replacement on the specified application.
Key Features
- Brand: BBB Industries New Rack and Pinion
- Part number: N311-0109
- Fits 1998-2000 Toyota Tacoma, power steering applications
- Hydraulic rack and pinion assembly
- Inner tie rods included; outer tie rods not included
- New unit, not remanufactured
- Rack length: 44.5 in (1130.3 mm)
- Turns lock to lock: 3.313
- Pressure port thread size: M16x1.50
- Return port thread size: M17x1.50
Product Details
The BBB Industries New Rack and Pinion line focuses on replacement steering gear assemblies built to match the original hydraulic layout. This N311-0109 unit uses a 0.688 in input shaft diameter, 1.875 in input shaft length, and a 2-hole mounting design with 3.25 in (82.55 mm) between mounting holes. For Toyota Tacoma steering repair, it provides the core rack assembly needed when restoring steering response, reducing play, or replacing a leaking hydraulic rack. This part cross-references Monroe Shocks & Struts (e.g., 19320954) for the same application.
Common Repair Uses
- Steering fluid leakage from the rack and pinion assembly
- Excessive steering play or loose steering feel
- Rough, inconsistent, or noisy hydraulic steering operation
- Worn internal rack components affecting steering precision
- Replacement for a damaged steering gear on a Toyota Tacoma
Installation Notes
Verify hydraulic line thread sizes, mounting-hole spacing, and input shaft dimensions before installation. This rack and pinion is for power steering applications only and should be matched to the vehicle’s steering configuration. Inspect related steering components, align the front end after installation, and confirm proper fluid fill and bleed procedures during service.
Quality Assurance
BBB Industries supplies new steering components for repair-focused replacement applications. N311-0109 is a new rack and pinion assembly built for the listed Toyota Tacoma fitment and dimensional requirements.
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2000 | Toyota | Tacoma | — | RWD | 2.4L | L4 | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2000 | Toyota | Tacoma | DLX | RWD | 3.4L | V6 | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2000 | Toyota | Tacoma | SR5 | RWD | 3.4L | V6 | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 1999 | Toyota | Tacoma | — | RWD | 2.4L | L4 | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 1999 | Toyota | Tacoma | DLX | RWD | 3.4L | V6 | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 1999 | Toyota | Tacoma | SR5 | RWD | 3.4L | V6 | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 1998 | Toyota | Tacoma | — | RWD | 2.4L | L4 | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 1998 | Toyota | Tacoma | DLX | RWD | 3.4L | V6 | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 1998 | Toyota | Tacoma | SR5 | RWD | 3.4L | V6 | N/A | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
