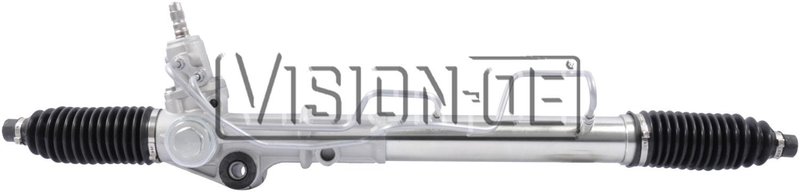

BBB Industries N311-0199 Rack and Pinion Assembly

New Hydraulic Rack and Pinion for Tacoma and 4Runner

BBB Industries N311-0199 is a new hydraulic rack and pinion assembly for select Toyota steering systems. It is built for 2002-2004 Toyota Tacoma and 2001-2002 Toyota 4Runner models equipped with power steering, with inner tie rods and bushings included for a complete steering gear replacement.

Key Features

• New rack and pinion assembly from BBB Industries New Rack and Pinion line
• Hydraulic steering design for power steering applications
• Inner tie rods included; outer tie rods not included
• Bushings included
• Input shaft diameter: 0.75 in. (19.05 mm)
• Rack length: 37.5 in. (952.5 mm)
• Turns lock to lock: 3.563
• Pressure port thread size: M16x1.50
• Return port thread size: M17x1.50
• Distance between mounting holes: 5.46 in. (138.684 mm)

Product Details

The BBB Industries New Rack and Pinion product line focuses on replacement steering gear assemblies built to match the original hydraulic layout used in select Toyota trucks and SUVs. Part number N311-0199 is a direct-fit steering rack for the specified Tacoma and 4Runner applications, with the correct mounting-hole spacing, input shaft dimensions, and port thread sizes needed for a proper hydraulic connection. This part cross-references Monroe Shocks & Struts (e.g., 19321032) for the same application.

What This Part Helps Address

• Excessive steering play or loose steering feel
• Fluid leakage from the rack and pinion assembly
• Uneven or inconsistent steering response
• Worn internal steering gear components
• Noise or binding during steering input

Installation Notes and Tips

Fits 2002-2004 Toyota Tacoma, N/A. Fits 2001-2002 Toyota 4Runner, N/A. Confirm the vehicle is equipped with power steering before ordering. Verify rack length, mounting-hole spacing, input shaft dimensions, and hydraulic port thread sizes against the original unit before installation. Outer tie rods are not included, so reuse or replace them as needed during service. Professional alignment is recommended after steering rack replacement.

Quality Assurance

BBB Industries supplies a new hydraulic rack and pinion assembly designed around the listed OE-style fitment and dimensional specifications for Toyota Tacoma and Toyota 4Runner steering systems.
