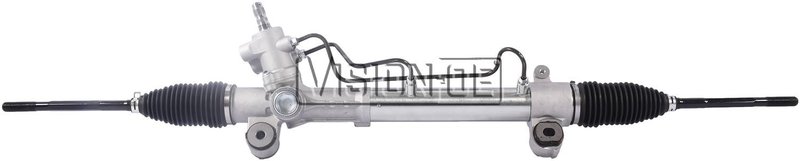

BBB Industries N311-0222 Rack and Pinion Assembly
| Brand | BBB Industries N311-0222 |
|---|---|
| Bushings Included | Yes |
| Distance Between Mounting Holes (In) | 15.75 |
| Distance Between Mounting Holes (mm) | 400.05 |
| Hydraulic or Electric | Hydraulic |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter (In) | 0.75 |
| Input Shaft Diameter (mm) | 19.05 |
| Input Shaft Length (In) | 1.75 |
| Input Shaft Length (mm) | 44.45 |
| New or Remanufactured | New |
| Number of Mounting Holes | 2 |
| Outer Tie Rods Included | No |
| Pressure Port Thread Size | M17x1.50 |
| Rack Length (In) | 45 |
| Rack Length (mm) | 1143 |
| Return Port Thread Size | M17x1.50 |
| Turns Lock To Lock | 3 |
| Product line | New Rack and Pinion |
| Fits | Toyota · 2 vehicles |
New rack and pinion. Fresh hydraulic assembly with bushings and inner tie rods included.
Hydraulic design. Delivers responsive steering feel with a 3-turn lock-to-lock ratio.
Complete assembly. Includes the rack, bushings, and inner tie rods for a simpler install.
Cross-references 44200-42140 and 19321049 for the same application. See all 2.
New Rack and Pinion for Toyota RAV4
BBB Industries N311-0222 is a new hydraulic rack and pinion assembly for 2004-2005 Toyota RAV4 models equipped with power steering. It is built for direct steering system replacement and includes inner tie rods and bushings for a complete rack-and-pinion service.
Key Features
- Brand: BBB Industries New Rack and Pinion
- Part number: N311-0222
- Fits 2004-2005 Toyota RAV4, power steering applications
- Hydraulic rack and pinion assembly
- Inner tie rods included; outer tie rods not included
- Bushings included
- Rack length: 45 in. (1143 mm)
- Distance between mounting holes: 15.75 in. (400.05 mm)
- Input shaft diameter: 0.75 in. (19.05 mm)
- Input shaft length: 1.75 in. (44.45 mm)
- Pressure and return port thread size: M17 x 1.50
- Turns lock to lock: 3
Product Details
The BBB Industries New Rack and Pinion line focuses on replacement steering components built for vehicle-specific fitment. This N311-0222 rack and pinion assembly matches the hydraulic steering layout used on 2004-2005 Toyota RAV4 models with power steering, making it a direct replacement option for restoring steering response and rack movement. The part number N311-0222 is also useful when cross-checking catalog listings and service references.
This part cross-references Toyota 44200-42140 and Delphi 19321049 for the same application.
What This Part Helps Address
- Excessive steering play or looseness
- Fluid leakage from the steering rack assembly
- Rough, inconsistent, or delayed steering response
- Worn internal rack components on hydraulic steering systems
- Noise or binding associated with a failing rack and pinion
Installation Notes and Tips
Verify hydraulic port thread size, input shaft dimensions, and mounting-hole spacing before installation. This rack and pinion is for 2004-2005 Toyota RAV4 vehicles with power steering, so confirm the steering system type and vehicle configuration against the original unit. Professional alignment is recommended after steering component replacement.
Quality Assurance
BBB Industries supplies this new rack and pinion assembly as a replacement steering component with application-specific dimensions and included inner tie rods and bushings for the listed Toyota RAV4 fitment.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2005 | Toyota | RAV4 | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
| 2004 | Toyota | RAV4 | Compatible with vehicles equipped with power steering.; New Rack and Pinion |
