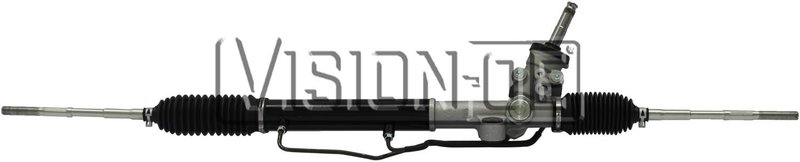

BBB Industries N313-0319 Rack and Pinion Assembly

New Rack and Pinion for Subaru Impreza

BBB Industries New Rack and Pinion N313-0319 is a hydraulic steering rack assembly built for direct replacement service on select Subaru Impreza models. It includes inner tie rods and bushings, with OE-style port sizing and mounting dimensions for a precise steering system match.

Fits 2005-2007 Subaru Impreza, N/A, for vehicles equipped with power steering. This BBB Industries rack and pinion assembly is part of the New Rack and Pinion line, focused on replacement steering components built for applications that require a new hydraulic unit rather than a remanufactured assembly.

Key Features

• Brand: BBB Industries
• Part number: N313-0319
• New hydraulic rack and pinion assembly
• Inner tie rods included
• Bushings included
• Pressure port thread size: M14x1.50
• Return port thread size: M16x1.50
• Rack length: 46.875 in. (1190.625 mm)
• Turns lock to lock: 2.563
• Input shaft diameter: 0.688 in. (17.463 mm)
• Input shaft length: 3.375 in. (85.725 mm)
• Mounting hole spacing: 3.5 in. (88.9 mm)

Product Details

The BBB Industries New Rack and Pinion line is built for steering system replacement where a new hydraulic assembly is required. N313-0319 is engineered with the specified input shaft dimensions, two mounting holes, and OE-style hydraulic port threads to support proper fitment on 2005-2007 Subaru Impreza vehicles equipped with power steering. Outer tie rods are not included, so the existing steering linkage or replacement outer tie rods should be verified during service. This part cross-references 19321248 for the same application.

Common Steering Issues This Part Can Address

• Excessive steering play or looseness
• Hydraulic steering fluid leakage from the rack assembly
• Uneven or inconsistent steering response
• Noisy steering operation caused by worn internal rack components
• Wear-related binding in the steering gear assembly

Installation Notes

Confirm hydraulic port thread sizes, mounting hole spacing, and input shaft dimensions before installation. This rack is for Subaru Impreza models with power steering and should be matched to the vehicle’s steering configuration before service. After installation, the hydraulic system should be inspected for leaks and properly bled to remove air from the steering circuit.

Quality Assurance

BBB Industries supplies replacement steering components through its New Rack and Pinion product line, and this assembly is built as a new unit for direct replacement use. Verify all fitment details against the vehicle before installation.
