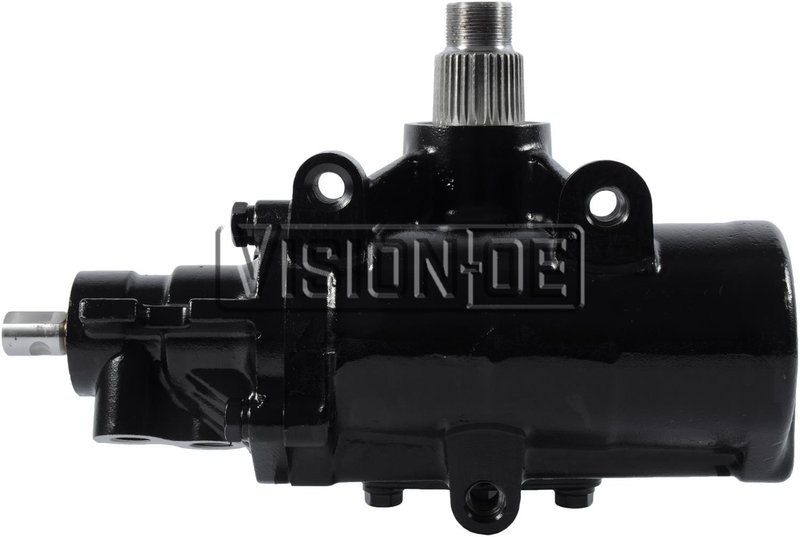

BBB Industries N501-0131 Steering Gear
| Brand | BBB Industries N501-0131 |
|---|---|
| Inlet Size | M18X1.50 |
| Input Shaft Diameter | 0.72 |
| Input Shaft Diameter | 18.29 |
| Installation Kit Included | Yes |
| Manual or Power | Electric |
| New or Remanufactured | New |
| Number of Mounting Holes | 3 |
| Outlet Size | M16X1.50 |
| Output Shaft Diameter | 1.63 |
| Output Shaft Diameter | 41.4 |
| Output Shaft Spline Count | 33 |
| Pressure Port Thread Size | M18X1.50 |
| Return Port Thread Size | M16X1.50 |
| Turns Lock To Lock | 4 |
| Product line | New Steering Gear |
| Fits | Ford · 6 vehicles |
New steering gear. Fresh replacement part for restoring steering performance.
Electric assist. Built for electric steering systems.
Installation kit included. Hardware is included for a smoother install.
Cross-references 8C3Z-3504-A, 8C3Z-3504-C and 19321299 for the same application. See all 3.
New Steering Gear for Ford Super Duty
BBB Industries New Steering Gear N501-0131 is a new electric steering gear built for select Ford Super Duty trucks with power steering. It is engineered for direct replacement service on 2008-2010 Ford F-250 Super Duty and 2008-2010 Ford F-350 Super Duty applications listed below.
The BBB Industries New Steering Gear line focuses on replacement steering components for vehicles that need precise steering response and correct OE-style fitment. This N501-0131 steering gear includes an installation kit and is configured for electric power steering service.
Key Features
- Brand: BBB Industries
- Brand line: New Steering Gear
- Part number: N501-0131
- New steering gear, not remanufactured
- Electric manual-or-power configuration
- Input shaft diameter: 0.72 in / 18.29 mm
- Output shaft diameter: 1.63 in / 41.4 mm
- Output shaft spline count: 33
- Pressure port thread size: M18x1.50
- Return port thread size: M16x1.50
- Turns lock to lock: 4
- Three mounting holes
- Installation kit included
Detailed Description
BBB Industries N501-0131 is a new steering gear for Ford F-250 Super Duty and Ford F-350 Super Duty trucks equipped with power steering. It is specified for 2008 Ford F-250 Super Duty built from August 1, 2007, 2008-2009 Ford F-350 Super Duty with the Fat Boy (67W) front axle excluded, and 2009-2010 Ford F-250 Super Duty plus 2010 Ford F-350 Super Duty power steering applications. This part cross-references Ford 8C3Z-3504-A and 8C3Z-3504-C, as well as 19321299, for the same application.
Use N501-0131 when replacing a worn steering gear on a Ford Super Duty truck that needs the correct shaft dimensions, port threads, and mounting pattern. The electric steering gear design, 33-spline output shaft, and 4 turns lock to lock support proper steering system operation on the listed vehicles.
Common Problems This Part Can Address
- Excessive steering play in a Ford F-250 Super Duty or F-350 Super Duty
- Steering gear leakage at the pressure or return ports
- Rough or inconsistent steering effort
- Worn internal steering gear components causing poor road feel
- Replacement needs after steering gear wear on power steering trucks
Installation Notes and Tips
Confirm the vehicle’s steering system, axle configuration, and build date before installation. This steering gear is listed for power steering applications and includes M18x1.50 pressure port and M16x1.50 return port thread sizes, so matching the existing hydraulic connections is important. Verify the input shaft diameter, output shaft diameter, spline count, and three-hole mounting pattern against the original unit before installation on Ford F-250 Super Duty or Ford F-350 Super Duty trucks.
Quality Assurance
BBB Industries supplies new steering components under its New Steering Gear product line for replacement service. N501-0131 is a new part built to match the listed fitment and dimensional specifications for the confirmed Ford Super Duty applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2010 | Ford | F-250 Super Duty | 6.4L | V8 | N/A | Compatible with vehicles equipped with power steering.; New Steering Gear |
| 2010 | Ford | F-350 Super Duty | 6.4L | V8 | N/A | Compatible with vehicles equipped with power steering.; New Steering Gear |
| 2009 | Ford | F-250 Super Duty | 6.4L | V8 | N/A | Compatible with vehicles equipped with power steering.; New Steering Gear |
| 2009 | Ford | F-350 Super Duty | 6.4L | V8 | N/A | Power Steering; w/o Fat Boy (67W) Front Axle; New Steering Gear |
| 2008 | Ford | F-250 Super Duty | 6.4L | V8 | N/A | Power Steering; Fits vehicles manufactured from August 1st, 2007.; New Steering Gear |
| 2008 | Ford | F-350 Super Duty | 6.4L | V8 | N/A | Power Steering; w/o Fat Boy (67W) Front Axle; New Steering Gear |
