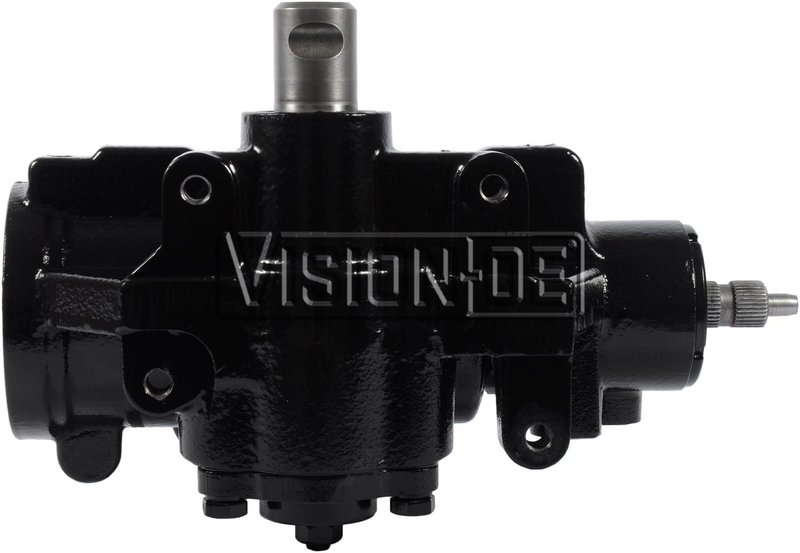

BBB Industries N503-0114 Steering Gear

Overview of BBB Industries New Steering Gear N503-0114

The BBB Industries New Steering Gear N503-0114 is designed for precise steering control in Chevrolet and GMC trucks and SUVs. This electric steering gear is engineered to meet the specifications required for models like the Chevrolet Blazer, GMC Jimmy, and K-Series trucks.

• Output shaft diameter: 1.25 inches (31.75 mm)
• Input shaft diameter: 0.8 inches (20.32 mm)
• Input shaft spline count: 32 splines
• Output shaft spline count: 9 splines
• Inlet size: 11/16x18 thread
• Outlet size: 5/8x18 thread
• Pressure port thread size: 11/16x18
• Return port thread size: 5/8x18
• Number of mounting holes: 4
• Turns lock to lock: 3.375
• Installation kit included
• Electric power steering type
• New, not remanufactured

Details on the New Steering Gear Product Line

The BBB Industries New Steering Gear line offers brand-new steering components designed to provide reliable performance and fitment for specific vehicle applications. This product line focuses on delivering steering gears that meet OEM specifications, ensuring compatibility and durability for Chevrolet and GMC models. The N503-0114 part is part of this line, providing a direct replacement solution with included installation hardware for ease of service.

Product Description and Specifications

This steering gear unit features an electric power steering design, suitable for Chevrolet Blazer, GMC Jimmy, K5 Blazer, K10, K10 Suburban, K20, and K20 Suburban models. The input shaft diameter measures 0.8 inches (20.32 mm) with 32 splines, while the output shaft diameter is 1.25 inches (31.75 mm) with 9 splines, ensuring proper engagement with the steering linkage. The unit includes four mounting holes for secure installation and has a lock-to-lock turn ratio of 3.375, providing responsive steering feel. Thread sizes for inlet, outlet, pressure, and return ports are standardized to 11/16x18 and 5/8x18, facilitating fluid connections. The included installation kit simplifies the replacement process.

Common Applications and Problem Resolution

• Restores precise steering response in Chevrolet and GMC trucks and SUVs
• Replaces worn or leaking steering gears causing steering play or fluid leaks
• Addresses hard or inconsistent steering effort in electric power steering systems
• Eliminates excessive steering wheel free play or noise
• Resolves mounting or fitment issues with previous steering gear units

Installation Notes and Tips

Installation of the BBB Industries New Steering Gear N503-0114 requires proper alignment of the input and output shafts to avoid premature wear. The included installation kit contains necessary hardware to ensure a secure fit. It is recommended to verify thread compatibility for inlet and outlet ports before connecting hydraulic lines. After installation, check for proper steering wheel centering and smooth operation through the full lock-to-lock range of 3.375 turns. Professional installation is advised for optimal results.

Quality Assurance and Warranty

This steering gear is a brand-new component manufactured to meet or exceed OEM standards. BBB Industries provides quality assurance through rigorous testing and inspection. The product includes a warranty covering defects in materials and workmanship, supporting reliability and long-term performance for Chevrolet and GMC steering systems.
