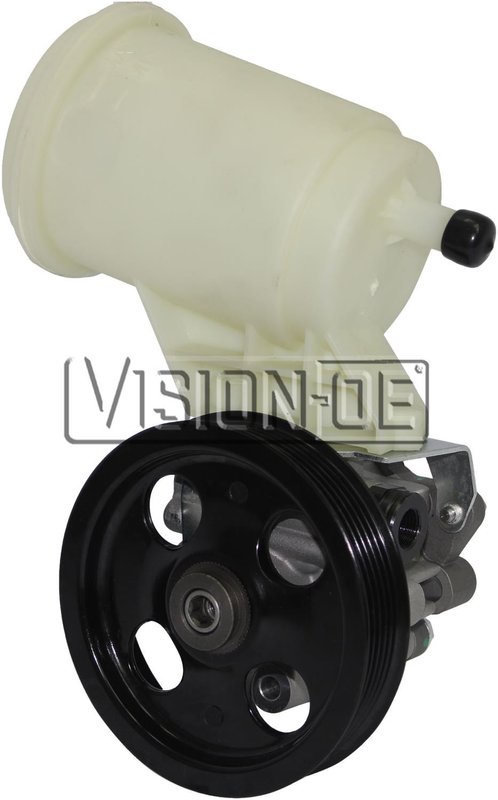

BBB Industries N920-01156A1 Power Steering Pump

BBB Industries New Power Steering Pump for Ram

The BBB Industries New Power Steering Pump is a direct-fit steering component for select Ram 2500 and Ram 3500 applications with a reservoir. Built as a new unit, this power steering pump is specified for vehicles that need a replacement pump with the correct pressure and return port connections.

Part number N920-01156A1 is designed for Ram 2500 and Ram 3500 models across 2010-2025 coverage, including 2021-2025 Ram 2500 and Ram 3500 applications with reservoir. The BBB Industries New Power Steering Pump line focuses on replacement pumps configured for vehicle-specific steering system requirements.

Key Features

• New power steering pump, not remanufactured
• Reservoir included for reservoir-equipped applications
• Installation kit included
• Press-on pulley attachment type with pulley included
• Pressure port: O-ring attachment, M16x1.5 size
• Return port: hose clamp attachment, 16mm size
• 3 mounting holes for application-specific fitment
• BBB Industries part number N920-01156A1

Detailed Description

This power steering pump is built for select Dodge Ram 2500 and Ram 2500/3500 trucks that use a reservoir-style steering pump assembly. It is a new replacement unit with the reservoir already included, along with a press-on pulley and installation kit for the specified application. The pressure port uses an O-ring connection with M16x1.5 sizing, while the return port uses a 16mm hose clamp connection.

Use N920-01156A1 when replacing a worn or leaking pump on Ram 2500 and Ram 3500 models that match the listed reservoir configuration. The part number N920-01156A1 is also a useful reference when verifying the correct steering pump for 2010-2025 Ram truck applications.

What This Part Helps Address

• Low or inconsistent power steering assist
• Noise from a worn steering pump
• Fluid leakage at the pump or ports
• Steering effort that increases during turns
• Replacement needs for reservoir-equipped steering systems

Installation Notes and Tips

Confirm reservoir-style fitment before ordering. This pump uses a press-on pulley design, so pulley transfer and alignment should be checked during installation. Verify the pressure port O-ring connection, M16x1.5 thread size, and 16mm hose clamp return port before assembly. Match the vehicle application exactly for Ram 2500 and Ram 3500 models listed in the fitment data.

Quality Assurance

BBB Industries supplies this new power steering pump as a vehicle-specific replacement component for the listed Ram applications. Part number N920-01156A1 is built to match the specified mounting, port, and reservoir configuration for proper service replacement.
