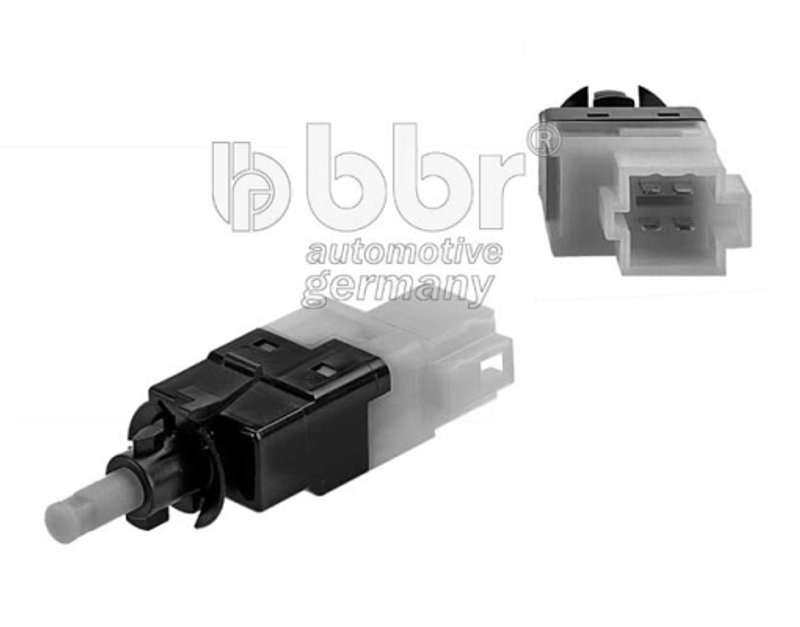

bbr 001-40-14803 Brake Light Switch

Brake Light Switch for Mercedes-Benz Applications

This bbr brake light switch, part number 001-40-14803, is an electric, manual foot-operated, mechanical switch used to trigger the rear brake lamps when the pedal is pressed. With a 4-pin design and compact dimensions of 90 mm length, 30 mm width, and 24 mm height, it is built for direct replacement service on a wide range of Mercedes-Benz vehicles.

Compatible With Mercedes-Benz Sprinter, Vito, V220d, V250, B200, C350, CL500, CLS350, CLS500, CLS55 AMG, CLS63 AMG, E280, E300, E320, E350, E500, E55 AMG, E63 AMG, and A160 applications across model years 2002-2023. Part number 001-40-14803 is also a direct reference point for buyers searching by OE-style brake light switch replacement.

Key Features

• Brand: bbr
• Part number: 001-40-14803
• Brake light switch for pedal-actuated brake lamp signaling
• 4-pin electrical connector
• Operating modes listed as electric, manual (foot operated), and mechanical
• Dimensions: 90 mm length, 30 mm width, 24 mm height
• Cross-reference part numbers include 001 545 67 09 and 2E0 945 515 A

Detailed Description

This brake light switch is used in Mercedes-Benz braking systems to send the stop-lamp signal when the brake pedal is pressed. The 4-pin configuration and compact housing make it a practical replacement for vehicles that require an OE-style brake pedal switch, including Mercedes-Benz Sprinter, Vito, and multiple E-Class, CLS, CL, B-Class, and A-Class applications. If you are searching for brake light switch 001-40-14803 for Mercedes-Benz Sprinter or Mercedes-Benz E350 brake light switch replacement, this part number is a direct match reference for the listed fitments.

This part cross-references 001 545 67 09 and 2E0 945 515 A for the same application.

What It Helps Fix

• Brake lamps that do not illuminate when the pedal is pressed
• Brake lights that stay on after pedal release
• Intermittent stop-lamp operation
• Brake pedal signal faults affecting vehicle warning systems
• Switch-related electrical issues in the brake lamp circuit

Installation Notes and Tips

Verify connector style, pin count, and physical dimensions before installation. Confirm vehicle fitment by year, model, and engine output where listed, especially on Mercedes-Benz Sprinter, Vito, and E-Class variants. After installation, test brake lamp operation and confirm the switch responds correctly to pedal movement.

Quality Assurance

bbr part 001-40-14803 is specified with OE-style interchange references and vehicle fitment data for Mercedes-Benz applications from 2002-2023. Review the listed dimensions, pin count, and cross-reference numbers to confirm the correct brake light switch for your vehicle before ordering.
