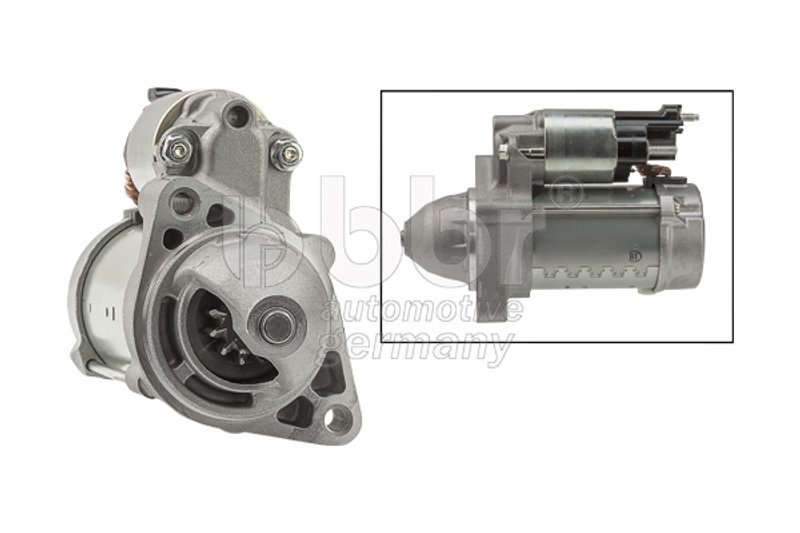

bbr 001-40-16345 Starter

Starter for Mercedes-Benz Applications

This bbr starter, part number 001-40-16345, is a 12V replacement starter built for select Mercedes-Benz vehicles with 1.8 kW output. It is specified with a 70 mm flange, 2 mounting bores, 12 teeth, clockwise rotation, and a 15 mm pinion rest position for OE-style fitment.

Key Features

• 12V starter for starting-system service on select Mercedes-Benz models
• 1.8 kW rated power for dependable cranking performance
• 70 mm flange with 2 mounting bores for application-specific mounting
• 12-tooth pinion and clockwise rotation
• Part number 001-40-16345 for easy identification
• Cross-references Mercedes-Benz OE numbers 006 151 45 01 and 651 906 00 26

Detailed Description

Use this starter when replacing a worn or failed unit on Mercedes-Benz CLA250, Sprinter, V220d, V250, C250, E200, E250, GLK250, SLK250, C180, C200, CLA200, and Vito applications listed below. The combination of 12V electrical specification, 1.8 kW rated power, 12 teeth, and clockwise rotation supports direct-fit starting-system service across the covered diesel and gasoline platforms. The part number 001-40-16345 is also useful when matching an existing starter by OE reference.

Vehicle Fitment

• Fits 2019-2023 Mercedes-Benz CLA250, N/A, 150 kW / 204 hp
• Fits 2016 Mercedes-Benz CLA250, N/A, 150 kW / 204 hp
• Fits 2013-2014 Mercedes-Benz CLA250, N/A, 150 kW / 204 hp
• Fits 2016-2023 Mercedes-Benz Sprinter, N/A, 105 kW / 143 hp
• Fits 2016-2020 Mercedes-Benz V220d, N/A, 100 kW / 136 hp
• Fits 2017-2020 Mercedes-Benz V250, N/A, 100 kW / 136 hp
• Fits 2010-2018 Mercedes-Benz C250, N/A, 150 kW / 204 hp
• Fits 2012-2016 Mercedes-Benz E200, N/A, 100 kW / 136 hp
• Fits 2014-2016 Mercedes-Benz E250, N/A, 150 kW / 204 hp
• Fits 2013-2015 Mercedes-Benz GLK250, N/A, 150 kW / 204 hp
• Fits 2012-2015 Mercedes-Benz SLK250, N/A, 150 kW / 204 hp
• Fits 2006-2015 Mercedes-Benz Sprinter, N/A, 120 kW / 163 hp
• Fits 2011-2014 Mercedes-Benz C180, N/A, 88 kW / 120 hp
• Fits 2010-2014 Mercedes-Benz C200, N/A, 100 kW / 136 hp
• Fits 2013-2014 Mercedes-Benz CLA200, N/A, 100 kW / 136 hp
• Fits 2010-2013 Mercedes-Benz Vito, N/A, 100 kW / 136 hp

Common Starting Issues This Part May Resolve

• Engine no-crank condition caused by starter motor failure
• Slow or inconsistent cranking during ignition
• Clicking at start-up when the starter does not engage properly
• Intermittent starting on Mercedes-Benz CLA250, Sprinter, C250, or Vito models
• Wear-related starting problems tied to pinion or internal starter damage

Installation Notes and Tips

Verify flange size, tooth count, rotation direction, voltage, and OE cross-reference before installation. Confirm the vehicle’s exact engine and power output against the fitment list for Mercedes-Benz CLA250, Sprinter, C250, E200, and related applications. Inspect battery condition, cables, grounds, and charging-system output during replacement so the new starter is not installed into an unresolved electrical fault.

Quality Assurance

This bbr starter is identified by part number 001-40-16345 and matched to OE references 006 151 45 01 and 651 906 00 26 for application verification. Use the published specifications and fitment data to confirm correct selection before service.
