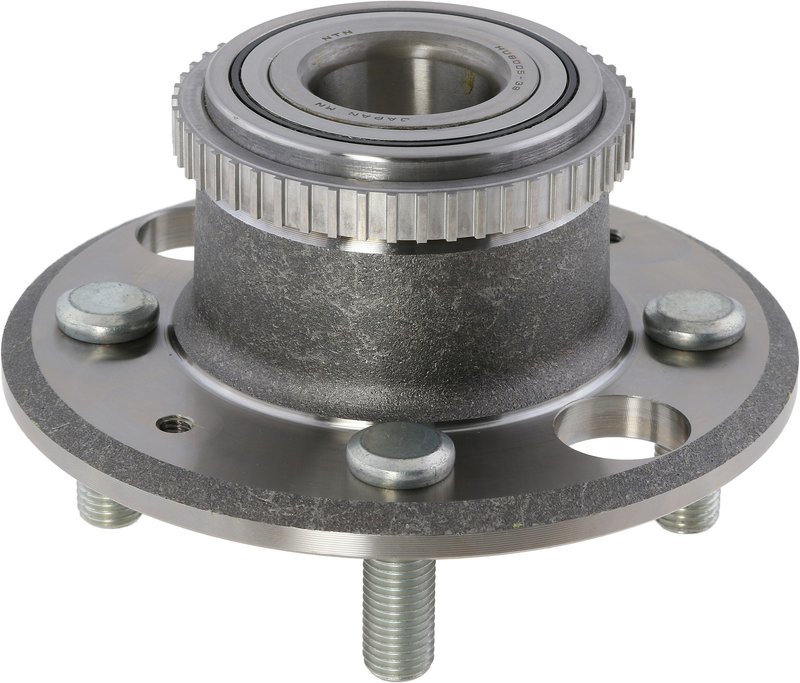

BCA WE60417 Wheel Bearing and Hub Assembly - Rear

Overview of BCA Wheel Bearing and Hub Assembly WE60417

The BCA WE60417 wheel bearing and hub assembly is engineered for reliable performance in select Acura and Honda vehicles. Designed specifically for non-driven wheels, this assembly supports smooth rotation and integrates with the vehicle's anti-lock braking system for enhanced safety.

• Compatible with Acura and Honda Civic, Civic del Sol, and Integra models
• Wheel pilot diameter: 2.205 inches (56.0 mm)
• Brake pilot diameter: 2.402 inches (61.0 mm)
• Includes 4 wheel studs sized M12x1.5
• Equipped with a tone ring for ABS functionality
• Bolt circle diameter: 100.0 mm (3.937 inches)
• Flange offset: 2.146 inches (54.5 mm)
• Designed for non-driven axle positions

Technical Specifications and Features

The BCA WE60417 hub assembly features precise dimensions to ensure proper fit and function on compatible Acura and Honda vehicles. The wheel pilot diameter of 2.205 inches (56.0 mm) and brake pilot diameter of 2.402 inches (61.0 mm) provide accurate alignment for wheel and brake components. The assembly includes four M12x1.5 wheel studs arranged on a 100 mm bolt circle diameter, supporting secure wheel mounting. Additionally, the flange offset of 2.146 inches (54.5 mm) is designed to maintain correct wheel positioning relative to the suspension and brake system.

This hub assembly is equipped with a tone ring to interface with the vehicle's anti-lock braking system (ABS), ensuring proper wheel speed sensor operation and contributing to vehicle safety. The part is intended for non-driven wheels, making it suitable for front or rear axle positions depending on the vehicle configuration.

Applications and Problem Resolution

This wheel bearing and hub assembly is compatible with the following vehicles:

• Acura Integra
• Honda Civic
• Honda Civic del Sol

Common issues addressed by replacing the hub assembly include:

• Excessive wheel bearing noise or roughness
• Vibration or wobbling in the wheel area
• ABS warning light due to faulty tone ring or sensor signal
• Loose or damaged wheel studs affecting wheel security
• Improper wheel alignment caused by worn hub components

Installation Notes and Tips

When installing the BCA WE60417 hub assembly, ensure the vehicle is securely lifted and supported. Remove the existing hub assembly carefully to avoid damage to surrounding components. Verify that the wheel pilot and brake pilot diameters match the vehicle specifications. Proper torque specifications should be followed for wheel studs and mounting bolts. Confirm ABS sensor alignment with the tone ring to maintain system functionality. It is recommended to inspect related suspension and brake components during installation.

Quality Assurance and Warranty

BCA manufactures this wheel bearing and hub assembly to meet or exceed OEM standards for fit, form, and function. The part number WE60417 undergoes rigorous quality control to ensure durability and reliable performance. While specific warranty details may vary, BCA typically offers coverage against defects in materials and workmanship. Consult product documentation or supplier information for exact warranty terms.
