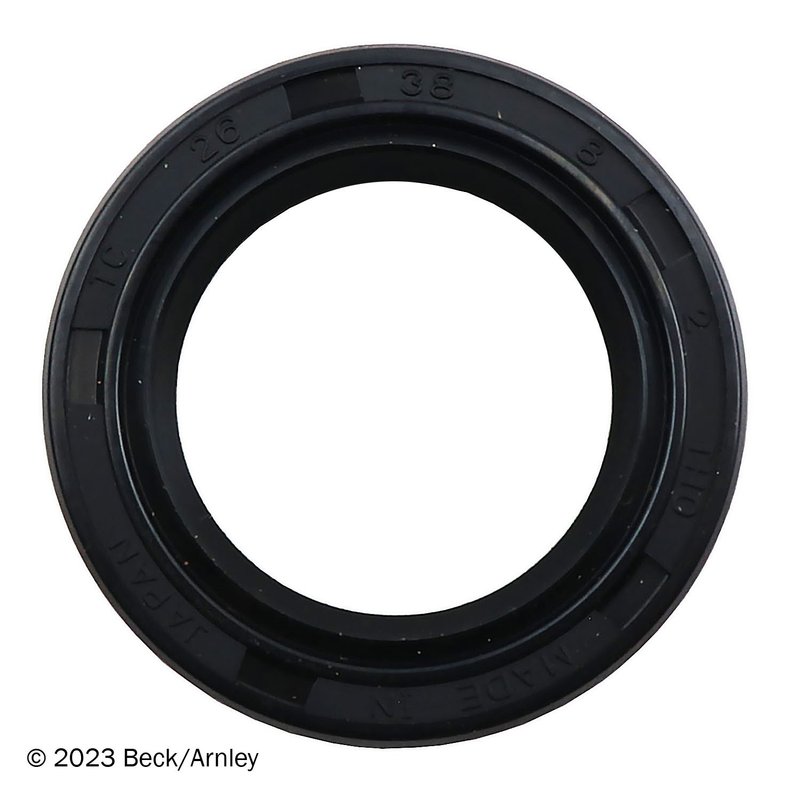

Beck Arnley 052-3346 Manual Transmission Drive Axle Seal

Manual Transmission Drive Axle Seal for Samurai

Beck Arnley 052-3346 is a manual transmission drive axle seal built to match foreign nameplate OE specifications for form, fit, and function. It is specified for the 1986-1992 Suzuki Samurai with flange application details, making it a direct-fit service part for axle seal replacement.

Key Features

• Housing bore: 38 mm for proper seal seating
• Shaft diameter: 26 mm for the specified axle interface
• OE-style replacement for foreign nameplate applications
• Engineered for manual transmission drive axle sealing service
• Beck Arnley part number 052-3346

Detailed Description

This Beck Arnley manual transmission drive axle seal is built around the critical dimensions that determine fit and sealing performance: a 38 mm housing bore and a 26 mm shaft diameter. Those measurements matter when servicing the transmission side of the axle interface, especially on the Suzuki Samurai, where correct seal sizing helps maintain a proper seal at the flange area. Beck Arnley sources parts to OE specifications for foreign vehicles, and 052-3346 is intended for applications that require the listed dimensions and fitment.

Compatible With 1986-1992 Suzuki Samurai, flange. This part cross-references no additional part numbers in the provided data.

Common Repair Uses

• Transmission fluid seepage at the drive axle seal area
• Seal wear from age, heat, or mileage
• Leak repair after axle or transmission service
• Restoring proper sealing at the flange interface
• Addressing contamination from a compromised seal

Installation Notes and Tips

Verify the housing bore and shaft diameter before installation to confirm the seal matches the application. Inspect the sealing surface, flange area, and surrounding components for wear or damage before fitting the new seal. Clean the bore thoroughly and install the seal squarely to avoid distortion or premature leakage. Confirm the vehicle application against the listed fitment for the 1986-1992 Suzuki Samurai before assembly.

Quality Assurance

Beck Arnley parts are sourced to meet foreign nameplate OE specifications for form, fit, and function. Product specialists work with global sourcing partners to help ensure the correct application is selected for service.
