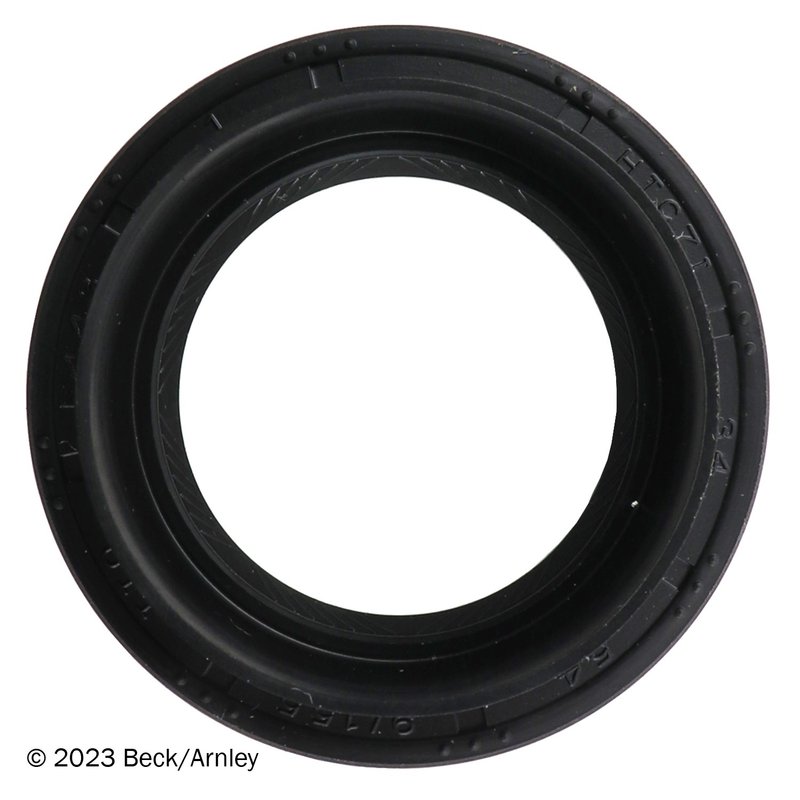

Beck Arnley 052-3525 Manual Transmission Drive Axle Seal - Right

Reliable Manual Transmission Drive Axle Seal for Select Vehicles

The Beck Arnley 052-3525 manual transmission drive axle seal is engineered to provide a precise fit and effective sealing for various Chevrolet, Geo, and Toyota models. Designed to maintain transmission integrity, this seal helps prevent fluid leaks and protects drivetrain components.

• Housing bore diameter: 54 mm for accurate fitment
• Overall width with side lip: 15.5 mm ensuring proper sealing
• Shaft diameter: 35 mm compatible with specified drive axles
• Compatible with Chevrolet Nova and Prizm models
• Fits Geo Paseo and Toyota Celica, Corolla, Echo, MR2, and Tercel vehicles

Technical Details and Specifications

This manual transmission drive axle seal features a 54 mm housing bore, which matches the transmission housing bore diameter for a secure installation. The overall width of 15.5 mm, including the side lip, provides an effective barrier against transmission fluid leaks. The 35 mm shaft diameter ensures compatibility with the drive axle shaft, maintaining proper sealing under operating conditions. The part number 052-3525 corresponds to Beck Arnley’s quality standards for gaskets and sealing systems, designed specifically for manual transmission applications.

Compatible Vehicles and Applications

This drive axle seal is compatible with a range of vehicles, including Chevrolet Nova and Prizm models, Geo Paseo, and several Toyota models such as Celica, Corolla, Echo, MR2, and Tercel. It is intended for use in manual transmission systems where maintaining a tight seal around the drive axle shaft is critical to prevent fluid loss and contamination.

• Prevents manual transmission fluid leaks
• Protects transmission internals from dirt and debris
• Maintains proper lubrication of drive axle components
• Reduces risk of premature transmission wear
• Ensures consistent drivetrain performance

Installation Notes and Tips

When installing the Beck Arnley 052-3525 manual transmission drive axle seal, ensure the housing bore and shaft are clean and free of debris. Proper alignment during installation is essential to avoid damage to the seal lip. Use appropriate tools to press the seal evenly into the housing bore without distortion. Verify the shaft diameter matches the 35 mm specification for optimal sealing performance.

Quality Assurance and Warranty

Beck Arnley parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The 052-3525 manual transmission drive axle seal undergoes rigorous quality control to maintain consistent dimensions and material integrity. Please refer to Beck Arnley’s warranty policy for coverage details on this part.
