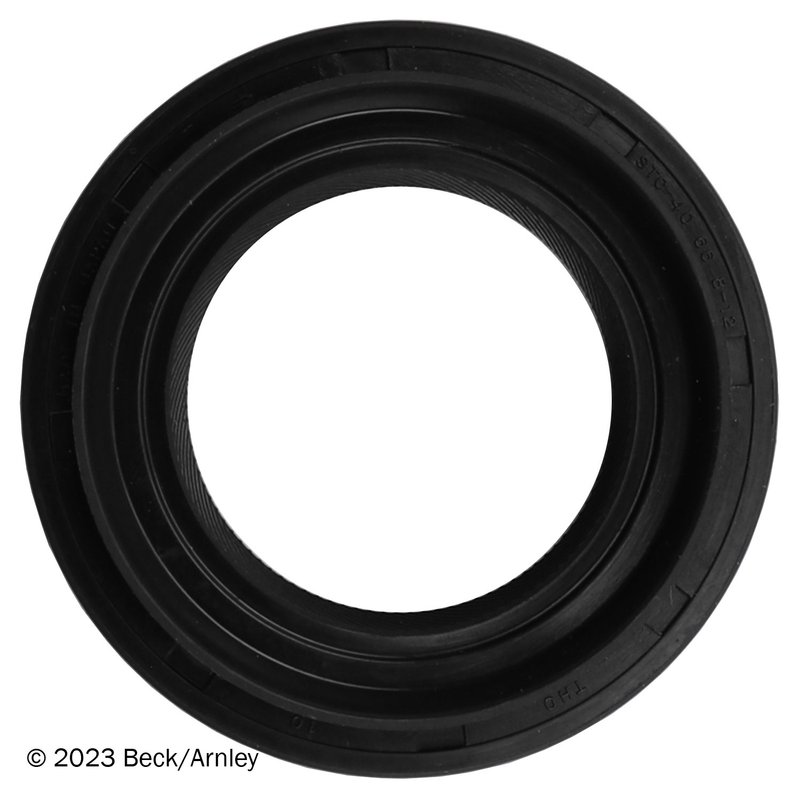

Beck Arnley 052-3531 Automatic Transmission Drive Axle Seal - Right

OE-Style Drive Axle Seal for Honda

Beck Arnley 052-3531 is an automatic transmission drive axle seal built to match foreign nameplate OE specifications for form, fit, and function. It is sized for the right-side flange application and supports a precise seal at the transmission housing where the axle passes through.

Fits 1988-1991 Honda Prelude, right; Fits 1990-1993 Honda Accord, right; Fits 1998-2000 Honda Prelude, right.

Key Features

• Housing bore: 66 mm for the transmission case opening
• Shaft diameter: 38.5 mm for the axle interface
• Overall width with side lip: 11 mm
• OE-spec form, fit, and function for import applications
• Right-side flange fitment for select Honda Prelude and Honda Accord models
• Beck Arnley part number 052-3531 for catalog and service matching

Detailed Description

This automatic transmission drive axle seal is engineered for select Honda applications that use a right-side flange setup. Beck Arnley 052-3531 follows OE-style dimensions, including a 66 mm housing bore, 38.5 mm shaft diameter, and 11 mm overall width with side lip, helping the seal seat correctly in the transmission housing and around the axle shaft. It fits 1988-1991 Honda Prelude, right; 1990-1993 Honda Accord, right; and 1998-2000 Honda Prelude, right. If you are searching for a Honda Prelude right axle seal or a Honda Accord automatic transmission drive axle seal, this part number 052-3531 matches the listed applications.

Beck Arnley sources parts to meet foreign nameplate OE specifications, giving technicians a direct replacement option for service work on these Honda models. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Issues This Seal May Address

• Transmission fluid leaking at the drive axle opening
• Fluid seepage around the right-side flange area
• Contamination entering the transmission through a worn seal
• Seal wear from age, heat, or axle movement
• Service replacement during transmission repair or axle work

Installation Notes and Tips

Verify the housing bore, shaft diameter, and side orientation before installation. Inspect the axle surface and transmission bore for wear, scoring, or debris that can affect sealing performance. Clean the sealing surfaces thoroughly and confirm the flange-style fitment matches the vehicle application before final assembly. For Honda Accord and Honda Prelude service, confirm the right-side location and transmission configuration against the vehicle build data.

Quality Assurance

Beck Arnley parts are sourced to meet foreign nameplate OE specifications for form, fit, and function. That OE-focused approach supports accurate replacement selection for 052-3531 on the listed Honda applications.
