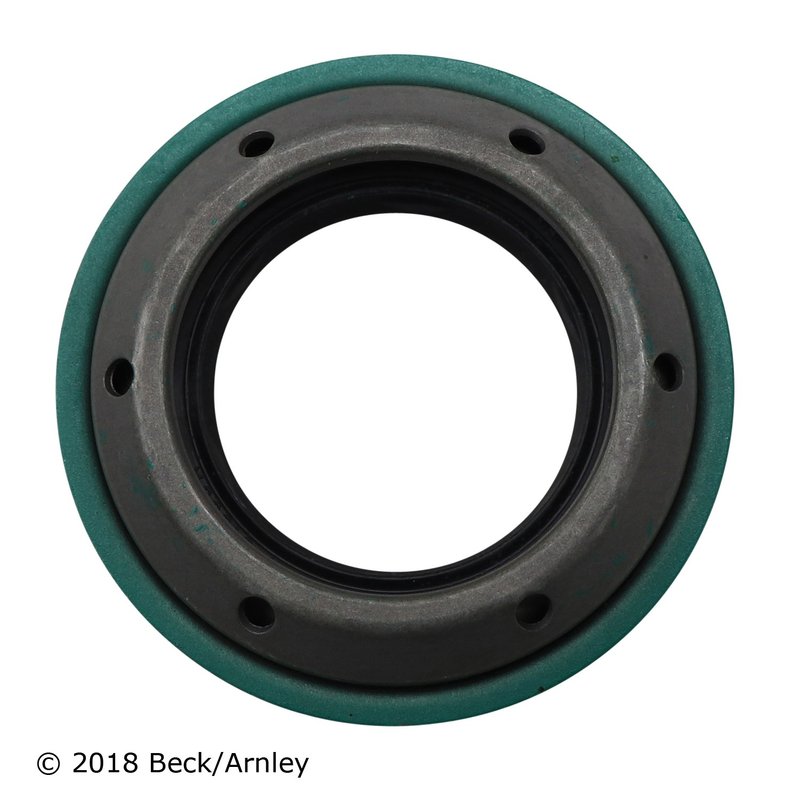

Beck Arnley 052-3557 Manual Transmission Drive Axle Seal

Manual Transmission Drive Axle Seal for Import Applications

Beck Arnley 052-3557 is a manual transmission drive axle seal built to match foreign nameplate OE specifications for form, fit, and function. It is sized for a 55 mm housing bore, 34 mm shaft diameter, and 15 mm overall width with side lip to support a proper sealing interface in the transmission housing.

Compatible with select Geo, Isuzu, Pontiac, and Chevrolet applications, this seal is a direct-fit service part for vehicles that use a flange-style drive axle seal design. Beck Arnley 052-3557 is a practical choice when servicing manual transmission leakage at the axle seal area.

Key Features

• Manual transmission drive axle seal for flange-style applications
• Housing bore: 55 mm
• Shaft diameter: 34 mm
• Overall width with side lip: 15 mm
• OE-spec fitment focus for foreign nameplate vehicles
• Beck Arnley part number 052-3557

Detailed Description

Beck Arnley 052-3557 is engineered for manual transmission sealing service where the axle passes through the transmission housing. The listed dimensions help confirm fitment: a 55 mm housing bore, 34 mm shaft diameter, and 15 mm overall width with side lip. Those measurements are important when replacing a worn seal on vehicles such as the 1990-1992 Geo Storm, 1991-1992 Isuzu Stylus, 1988-1992 Pontiac LeMans, 1989 Geo Spectrum, and 1985-1988 Chevrolet Spectrum. Beck Arnley 052-3557 is sourced to meet OE specifications for form, fit, and function, helping restore the sealing surface required for manual transmission drive axle service.

This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

What It Helps Address

• Transmission fluid seepage at the drive axle seal
• Leakage around the flange-style axle opening
• Seal wear from age, heat, and mileage
• Loss of proper sealing at the manual transmission housing
• Service replacement for OE-style import drivetrain maintenance

Installation Notes and Tips

Verify the housing bore, shaft diameter, and seal width before installation to confirm the correct match. Inspect the axle flange, seal bore, and surrounding housing for wear, scoring, or contamination before fitting the new seal. Clean the sealing surfaces thoroughly and install the seal squarely to avoid distortion or premature leakage. Confirm the vehicle application by year, make, and model before ordering.

Quality Assurance

Beck Arnley parts are sourced to meet foreign nameplate OE specifications for form, fit, and function. Product specialists work with global sourcing partners to help ensure the correct replacement part is selected for the application.

• Fits 1990-1992 Geo Storm, FLANGE
• Fits 1991-1992 Isuzu Stylus, FLANGE
• Fits 1988-1992 Pontiac LeMans, FLANGE
• Fits 1989 Geo Spectrum, FLANGE
• Fits 1985-1988 Chevrolet Spectrum, FLANGE
