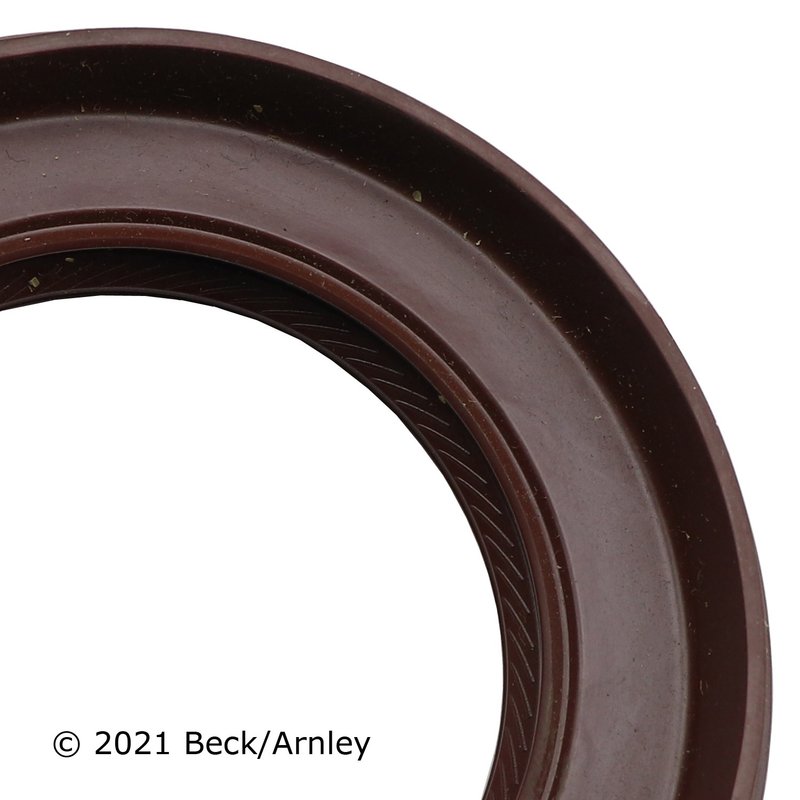

Beck Arnley 052-3615 Automatic Transmission Drive Axle Seal - Left or Right

Overview of Beck Arnley Automatic Transmission Drive Axle Seal 052-3615

The Beck Arnley 052-3615 automatic transmission drive axle seal is engineered for precise fitment and reliable sealing performance. Designed specifically for select Lexus and Toyota models, this seal ensures optimal protection against fluid leaks in the transmission system.

• Housing bore diameter: 80 mm for accurate seating
• Overall width with side lip: 23 mm for enhanced sealing
• Shaft diameter: 50 mm to match OEM specifications
• Compatible with multiple Lexus and Toyota models including Avalon, Camry, and RAV4
• Part number 052-3615 for easy identification and replacement

Technical Details and Specifications

This automatic transmission drive axle seal features an 80 mm housing bore, ensuring a secure fit within the transmission housing. The 23 mm overall width with side lip provides an effective barrier against transmission fluid leakage, while the 50 mm shaft diameter matches the drive axle shaft for a tight seal. These precise dimensions help maintain transmission integrity and prevent contamination or fluid loss.

Compatible Vehicles and Applications

The Beck Arnley 052-3615 seal is compatible with a range of Lexus and Toyota vehicles, including Avalon, Camry, ES250, ES300, ES330, Highlander, HS250h, Matrix, RAV4, RX300, RX330, RX350, RX450h, Sienna, and Solara models. This part is designed to meet the specific requirements of these vehicles’ automatic transmission systems, providing a reliable replacement option for maintenance or repair.

Common Issues Addressed by This Transmission Seal

• Prevents automatic transmission fluid leaks around the drive axle
• Reduces risk of contamination entering the transmission system
• Helps maintain proper transmission pressure and performance
• Minimizes wear on transmission components caused by fluid loss
• Addresses seal degradation due to age or damage

Installation Notes and Tips

When installing the Beck Arnley 052-3615 drive axle seal, ensure the housing bore and shaft are clean and free of debris. Proper alignment during installation is critical to avoid seal damage. Use appropriate tools to press the seal evenly into place without distortion. Verify the seal’s fit by checking the 80 mm housing bore and 50 mm shaft diameter compatibility with the vehicle’s transmission components.

Quality Assurance and Warranty Information

Beck Arnley parts are manufactured to meet or exceed OEM standards, ensuring durability and performance. The 052-3615 automatic transmission drive axle seal undergoes rigorous quality control to provide consistent sealing reliability. Warranty coverage details can be obtained from the product documentation or authorized Beck Arnley distributors.
