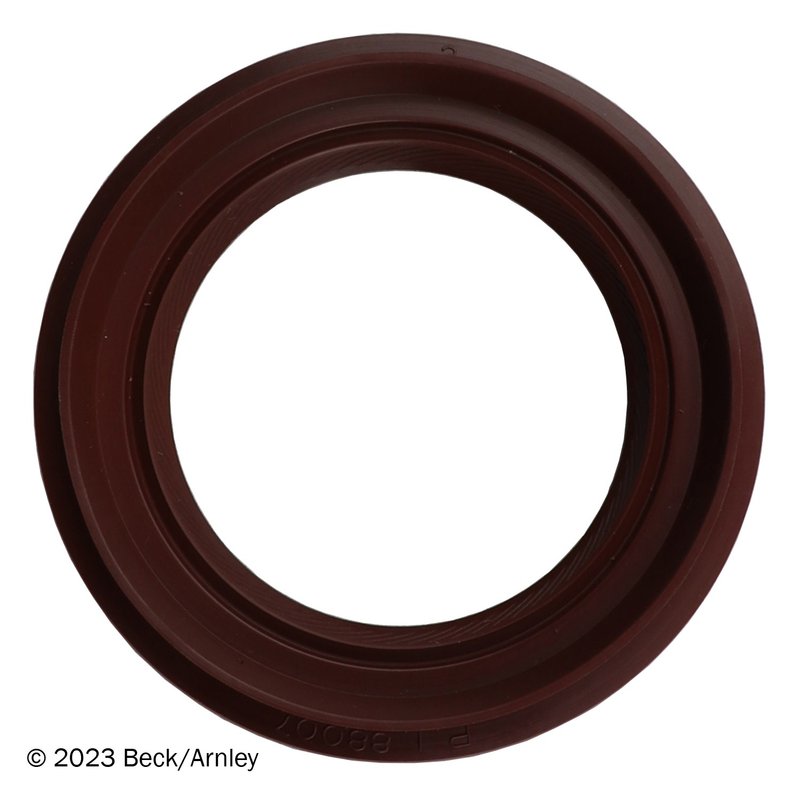

Beck Arnley 052-3756 Transfer Case Output Shaft Seal - Rear

Transfer Case Output Shaft Seal for Toyota

The Beck Arnley 052-3756 transfer case output shaft seal is built for foreign nameplate applications that require OE-style form, fit, and function. It is sized for the rear transfer case position and matches the dimensional requirements needed for a proper seal at the output shaft.

• Housing bore: 61 mm
• Shaft diameter: 40 mm
• Overall width with side lip: 13 mm
• Rear transfer case output shaft seal
• OE-spec fitment focus for Toyota applications

OE-Style Fit and Dimensions

Beck Arnley 052-3756 is engineered around the critical seal dimensions that matter during service: 61 mm housing bore, 40 mm shaft diameter, and 13 mm overall width with side lip. Those measurements help ensure the seal seats correctly in the transfer case housing and maintains contact at the output shaft, which is essential for controlling fluid at the rear transfer case area. This part is a direct-fit choice for Toyota Tundra, Toyota 4Runner, and Toyota Tacoma rear applications listed below.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Vehicle Fitment

• Fits 2000-2003 Toyota Tundra, Rear
• Fits 1996-2002 Toyota 4Runner, Rear
• Fits 1995-2000 Toyota Tacoma, Rear

Common Reasons to Replace

• Transfer case fluid seepage at the rear output shaft
• Wet or oily residue around the transfer case housing
• Seal wear from shaft rotation and age
• Service repair after transfer case maintenance
• Leak-related driveline contamination concerns

Installation Notes

Inspect the output shaft surface and housing bore before installation to confirm they are clean and free of damage. Verify the seal orientation matches the transfer case design, and compare the old seal dimensions to the Beck Arnley 052-3756 before pressing it into place. For Toyota 4Runner, Tacoma, and Tundra rear transfer case service, accurate seating is important to maintain a proper seal at the shaft.

Quality Assurance

Beck Arnley sources parts to meet foreign nameplate OE specifications for form, fit, and function. The brand works with global sourcing partners to help ensure the replacement part matches the application requirements with confidence.
