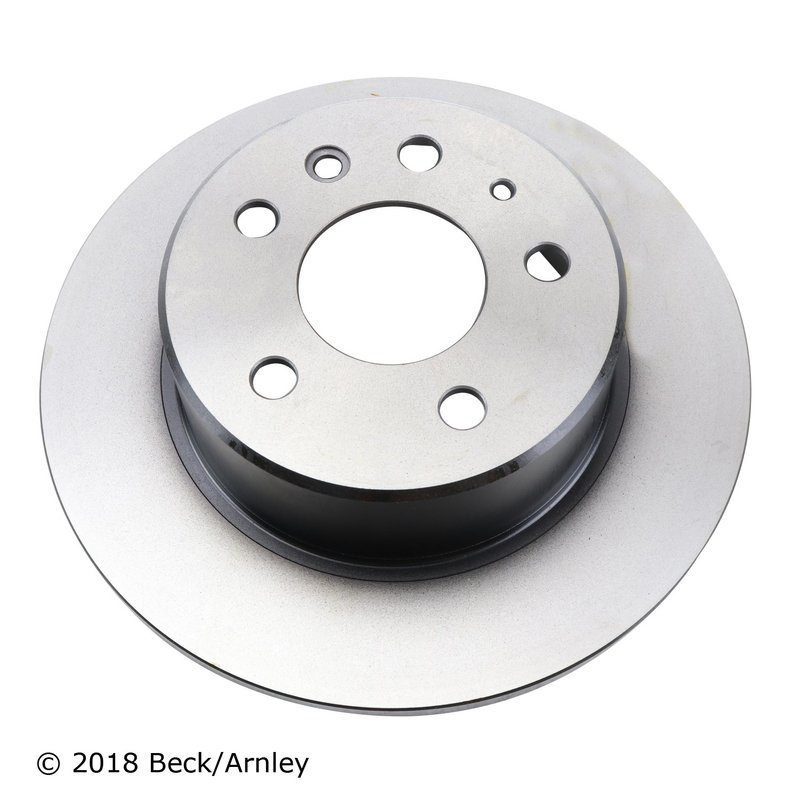

Beck Arnley 083-0802 Disc Brake Rotor - Rear

Overview of Beck Arnley Disc Brake Rotor 083-0802

The Beck Arnley 083-0802 disc brake rotor is designed specifically for select Mercedes-Benz models, including the 300D, 300SD, 300SEL, and 560SL. This solid, non-vented rotor offers reliable braking performance with precise fitment for vehicles requiring a 5-lug bolt pattern.

• Solid disc brake rotor, non-vented design
• 5 lug quantity with 112 mm bolt pattern
• Rotor outer diameter: 279 mm
• Rotor thickness: 10 mm surface thickness, minimum thickness 8.3 mm
• Center hole diameter: 67 mm for accurate hub fit
• Compatible with multiple Mercedes-Benz models from 300D to 560SL

Detailed Product Specifications

This Beck Arnley disc brake rotor (part number 083-0802) features a solid construction without venting, suitable for applications where vented rotors are not required. The rotor measures 279 mm in outer diameter and has a rotor height of 72.9 mm, ensuring proper clearance and fitment. The bolt pattern is 112 mm with 5 lug holes, each having a lug stud hole inner diameter of 15.1 mm. The rotor hub outer diameter is 167.6 mm, and the rotor ID is 159 mm, designed to fit securely on the hub assembly. The rotor surface thickness is 10 mm, with a minimum thickness specification of 8.3 mm to maintain safe braking performance over time.

Compatible Mercedes-Benz Models

This disc brake rotor is compatible with a range of Mercedes-Benz vehicles, including:

• 300D, 300SD, 300SDL
• 300SE, 300SEL
• 300TD
• 350SD, 350SDL
• 380SE, 380SEC, 380SEL, 380SL, 380SLC
• 420SEL
• 500SEC, 500SEL
• 560SEC, 560SEL, 560SL

Common Applications and Issues Addressed

• Replacement for worn or warped rotors causing brake pulsation
• Restores proper braking surface for improved stopping power
• Eliminates noise and vibration related to rotor damage
• Ensures correct fitment for 5-lug, 112 mm bolt pattern Mercedes-Benz models
• Maintains rotor thickness within manufacturer specifications for safety

Installation Notes and Tips

When installing the Beck Arnley 083-0802 rotor, ensure the hub surface is clean and free of rust or debris to promote proper seating. Verify the rotor thickness before installation to confirm it meets minimum thickness requirements. Use the correct torque specifications for lug nuts to avoid rotor warping. This rotor is solid and non-vented, so it is important to confirm compatibility with your vehicle’s braking system requirements.

Quality Assurance and Warranty

Beck Arnley parts are manufactured to meet or exceed OEM standards for fit, form, and function. The 083-0802 disc brake rotor undergoes rigorous quality control to ensure durability and consistent performance. Warranty coverage details should be confirmed with the original parts provider or distributor.
