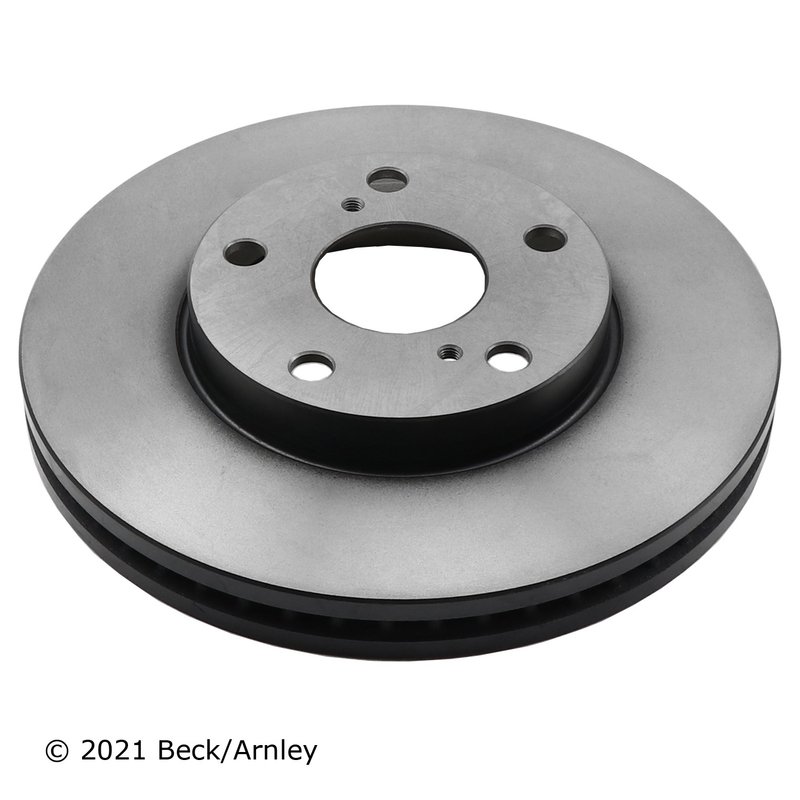

Beck Arnley 083-2450 Disc Brake Rotor - Front

Overview of Beck Arnley Disc Brake Rotor 083-2450

The Beck Arnley 083-2450 disc brake rotor is engineered for reliable braking performance on select Lexus and Toyota vehicles. Designed with vented construction and precise dimensions, this rotor supports consistent heat dissipation and durability for models like the Toyota Camry and Lexus ES300.

• Vented rotor design for improved cooling
• 5 lug quantity with 114 mm bolt pattern
• Rotor outer diameter of 274.9 mm and thickness of 27.9 mm
• Center hole diameter of 61.9 mm for accurate fitment
• Compatible with Lexus Avalon, Toyota Sienna, and Solara

Detailed Product Specifications

This vented disc brake rotor features a 5-lug configuration with a 114 mm bolt pattern, suitable for various Lexus and Toyota models including the Avalon, Camry, ES300, Sienna, and Solara. The rotor has a 274.9 mm outer diameter and a surface thickness of 27.9 mm, ensuring proper contact with brake pads. The rotor center hole measures 61.9 mm, and the lug stud hole inner diameter is 14.5 mm, providing precise alignment during installation. With a rotor height of 49 mm and a hub outer diameter of 150.9 mm, this rotor maintains structural integrity under braking stress. The minimum thickness specification is 26 mm, which is critical for maintaining safe braking performance over time.

Compatible Vehicles and Applications

This Beck Arnley disc brake rotor 083-2450 is compatible with the following vehicles:

• Lexus Avalon
• Lexus ES300
• Toyota Camry
• Toyota Sienna
• Toyota Solara

It is designed to replace worn or damaged rotors on these models, ensuring consistent braking response and safety.

Common Issues Addressed by This Rotor

• Brake pulsation caused by warped rotors
• Reduced braking efficiency due to rotor wear
• Overheating from insufficient rotor ventilation
• Noise and vibration during braking
• Uneven pad wear resulting from rotor surface irregularities

Installation Notes and Tips

When installing the Beck Arnley 083-2450 rotor, ensure the rotor surface is clean and free of debris before mounting. Verify the bolt pattern and lug stud hole dimensions match the vehicle specifications. It is recommended to replace brake pads simultaneously to optimize braking performance. Proper torque specifications should be followed for lug nuts to avoid rotor distortion. Always check rotor thickness against the minimum thickness of 26 mm to confirm suitability for continued use.

Quality Assurance and Warranty

Beck Arnley rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The 083-2450 rotor undergoes rigorous quality control to ensure durability and consistent braking performance. While specific warranty details are not provided here, Beck Arnley products typically come with a limited warranty covering defects in materials and workmanship.
