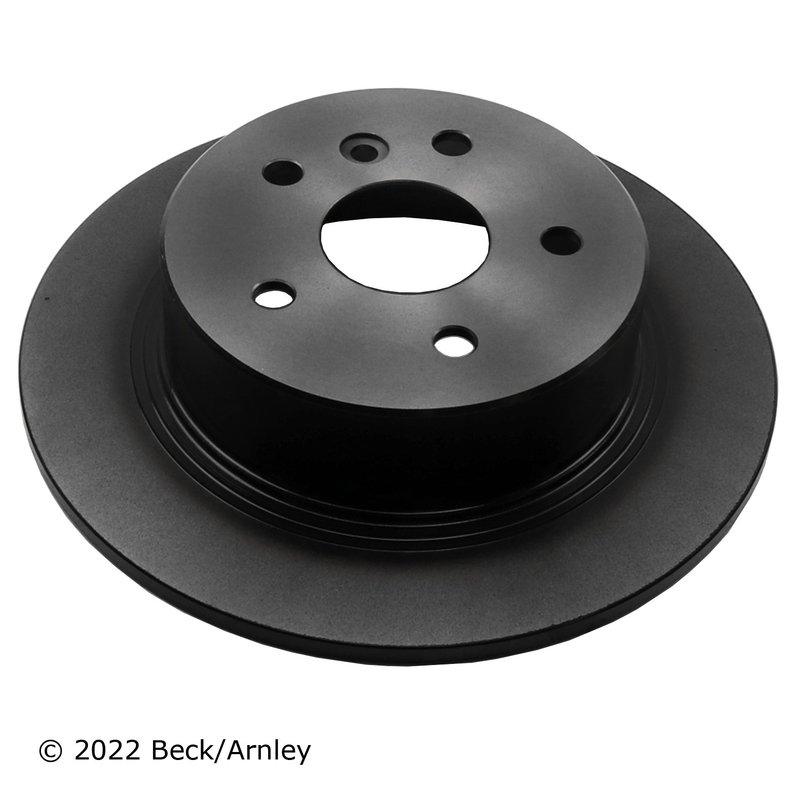

Beck Arnley 083-2644 Disc Brake Rotor - Rear

Overview of Beck Arnley Disc Brake Rotor 083-2644

The Beck Arnley 083-2644 disc brake rotor is designed specifically for Toyota Avalon models, providing reliable braking performance. This solid rotor features a 5-lug bolt pattern and precise dimensions to ensure proper fitment and function.

• Solid disc brake rotor, not vented
• 5-lug bolt pattern with 114 mm spacing
• Lug stud hole inner diameter: 14.6 mm
• Rotor center hole inner diameter: 62 mm
• Rotor outer diameter: 290.9 mm
• Rotor height: 65.7 mm
• Rotor hub outer diameter: 178.9 mm
• Minimum rotor thickness: 8 mm
• Rotor surface thickness: 9 mm

Detailed Product Description

This Beck Arnley disc brake rotor 083-2644 is engineered as a solid rotor, meaning it does not have venting channels. It is designed to fit Toyota Avalon vehicles requiring a 5-lug wheel configuration with a 114 mm bolt pattern. The rotor's precise dimensions, including a 290.9 mm outer diameter and 65.7 mm height, ensure compatibility and proper alignment with the vehicle's braking system. The rotor's minimum thickness of 8 mm and surface thickness of 9 mm meet OEM specifications for safe and effective braking performance.

Compatible Vehicles and Applications

This disc brake rotor is compatible with Toyota Avalon models that require a 5-lug, 114 mm bolt pattern rotor. It is suitable for replacing worn or damaged rotors to restore braking efficiency and safety.

• Eliminates rotor warping and vibration
• Addresses uneven brake pad wear
• Restores proper braking response
• Replaces rotors with surface scoring or damage
• Improves overall brake system reliability

Installation Notes and Tips

When installing the Beck Arnley 083-2644 rotor, ensure the rotor surface is clean and free of any contaminants before mounting. Verify the rotor thickness meets or exceeds the minimum thickness specification of 8 mm. Proper torque specifications should be followed for lug nuts to maintain wheel and rotor alignment. It is recommended to inspect brake pads and hardware during rotor replacement for optimal braking performance.

Quality Assurance and Warranty

Beck Arnley rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The 083-2644 rotor undergoes rigorous quality control to ensure durability and consistent braking performance. Warranty coverage details should be confirmed with the product documentation or manufacturer.
